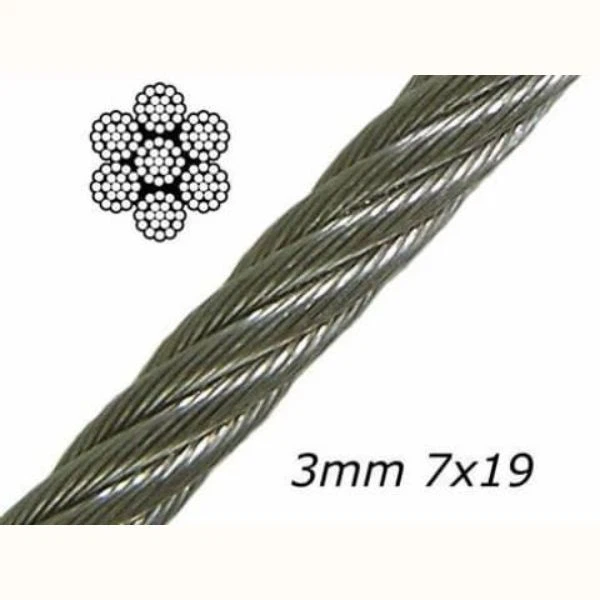

What is a 7×19 construction?

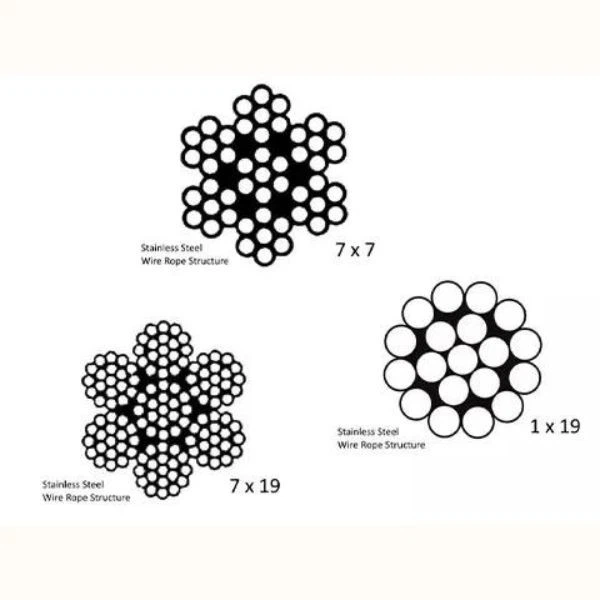

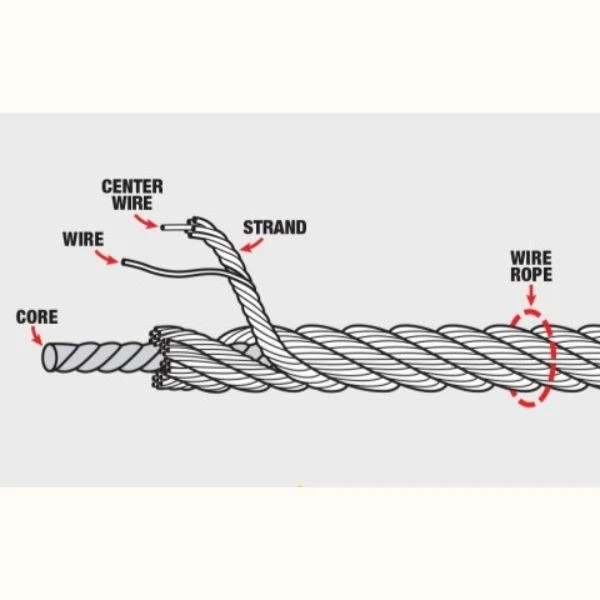

7×19 indicates that the wire rope is composed of 7 strands, each of which consists of 19 finer stainless steel wires, for a total of 133 wires. This construction provides excellent flexibility while offering good fatigue resistance. Compared to 1×19 or 7×7 constructions, the 7×19 is "softer" at the same 3mm diameter, allowing it to easily pass through small-diameter pulleys or navigate complex routing.

Technical Specifications (for reference)

Specifications	Value/Description
Nominal Diameter	3 mm
Construction	7×19
Material	304 stainless steel (06Cr19Ni10)
Breaking Strength	Approx. 500–700 kg (actual measurements subject to test report)
Recommended Working Load	1/5–1/10 of breaking tensile strength

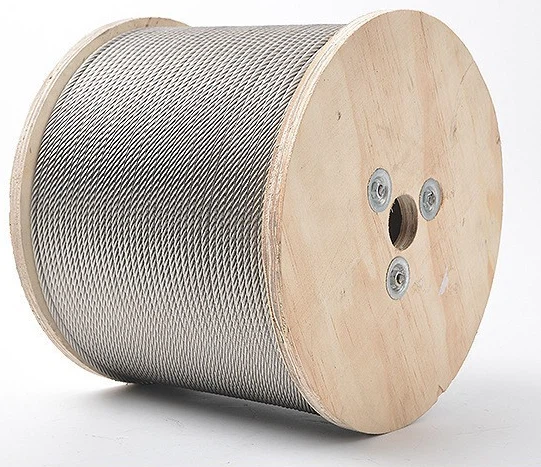

Packaging	Coiled, spooled, or bundled with cable ties

Product Advantages

1. Exceptional Flexibility

The 3mm 7×19 construction allows for an extremely small bending radius, making it ideal for repeated bending or coiling in confined spaces. It passes smoothly through applications ranging from flexible drive shafts inside machinery to continuous wiring in guardrail handrails.

2. Corrosion Resistance

Made of 304 stainless steel, it withstands exposure to ordinary humid air, rain, and mildly acidic or alkaline environments. Changtai products feature a smooth, rust-free surface, making them suitable for building curtain walls, guardrails, and general industrial applications.

3. Consistent Breaking Strength

Despite its small 3mm diameter, the 7×19 304 stainless steel wire rope maintains reliable breaking strength (typically between 500 and 700 kgf, depending on specific manufacturing processes). Changtai conducts random tensile strength tests on every batch of products and provides actual test data to assist users in calculating safe working loads.

4. Smooth Surface

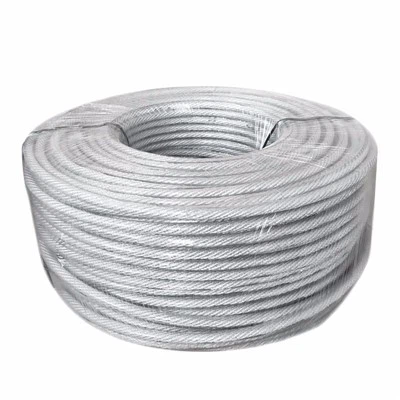

Thanks to precision stranding and post-processing techniques, the wire rope has a smooth surface that is gentle on the hands and will not scratch the accompanying pulleys or sleeves. Coating options such as plastic coating and nylon wrapping are also available upon request.

Product Applications

Architectural Decorations and Railings

Stainless steel glass railing cables, stair railing through-cables, landscape bridge stay cables, and horizontal tension cables for point-supported curtain walls.

Industrial Equipment and Controls

Limit cables for small lifting equipment, flexible shafts for remote valve control, wire ropes for counterbalance hoists, and push-pull cables for automated equipment.

Marine and Offshore Engineering (Freshwater/Inshore)

Rigging for inland waterway sailboats, mooring ropes for aquaculture cages, fishing net tow ropes (304 grade can be used in non-seawater environments).

Models, DIY, and Photography

Control lines for model aircraft/cars, photography track tow ropes, small robot drive cables, 3D printer pull wires.

Everyday and Outdoor Use

Flagpole guy wires, tent guy ropes, gardening support lines, main ropes for bird netting.

How to Contact Us

How To Cooperate With Us?

If you are looking for a 3mm 7×19 304 stainless steel wire rope that is thin in diameter, sufficiently flexible, and rust-resistant, please feel free to contact Changtai. We can provide samples for testing and offer professional recommendations on product selection.

To request a price list or samples, please leave a message
