Introduction
Flexible Galvanized Steel Wire Rope for Safety Systems, Restraint Cables and Industrial Protection Applications

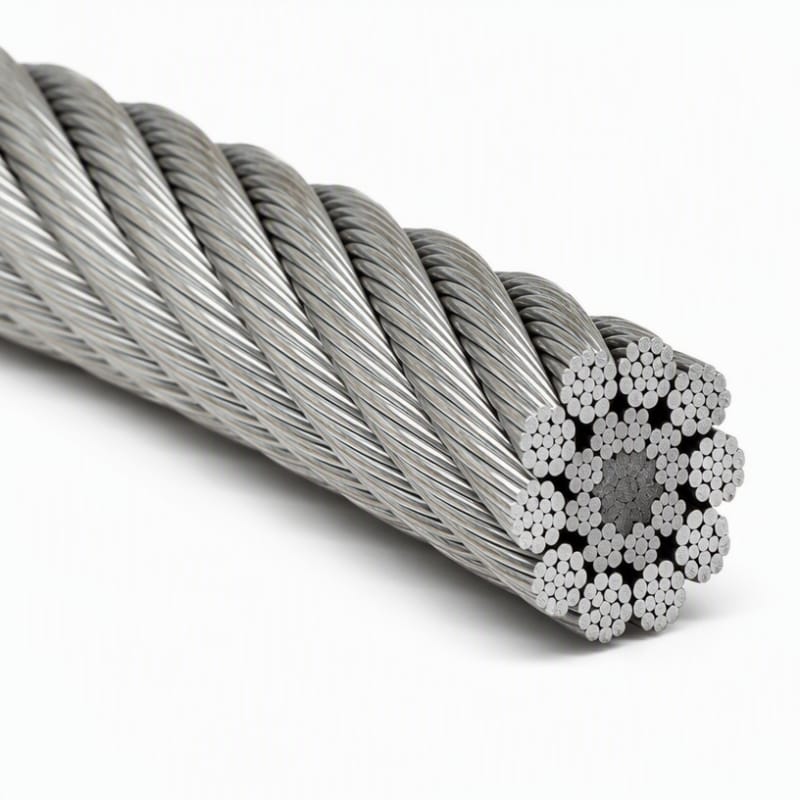

The 7x19 Galvanized Core Safety Rope is a high-flexibility steel wire rope designed for safety restraint systems, fall protection accessories, equipment securing, industrial safety cables, and general protective applications. Manufactured with a 7×19 construction and galvanized steel core, this rope provides an excellent balance of flexibility, tensile strength, corrosion resistance, and durability.
Solite supplies OEM 7×19 galvanized core safety ropes with customized diameters, lengths, coating options, end fittings, and assembly solutions for industrial equipment manufacturers, safety system suppliers, and engineering projects.
Inquire About a Detailed Custom Solution
Product Features
Flexible 7×19 Construction
The 7×19 structure consists of 7 strands with 19 wires per strand, providing excellent flexibility compared with rigid wire rope constructions.
Advantages:
High flexibility
Excellent bending performance
Good fatigue resistance
Smooth operation through pulleys
Suitable for repeated movement
Reliable safety performance
Galvanized Steel Core Protection
The zinc-coated steel wires provide enhanced environmental resistance.
Advantages:
Improved corrosion resistance
Protection against moisture and oxidation
Suitable for outdoor applications
Extended service life
Lower maintenance requirements
Technical Specifications
Technical Specifications
|
Item |
Specification |
|
Product Name |
7x19 Galvanized Core Safety Rope |
|
Construction |
7×19 |
|
Material |
Galvanized Carbon Steel |
|
Core Type |
Steel Core |
|
Diameter Range |
1 mm – 20 mm |
|
Tensile Grade |
1570 MPa / 1770 MPa / 1960 MPa |
|
Surface Treatment |
Zinc Galvanized |
|
Lubrication |
Industrial Lubricant |
|
Length |
Customized |
|
Standard |
EN 12385 / ASTM A1023 |
Construction Characteristics
|
Feature |
Performance |
|
Flexibility |
Excellent |
|
Corrosion Resistance |
Good |
|
Fatigue Resistance |
Good |
|
Abrasion Resistance |
Medium |
|
Breaking Strength |
Medium-High |
|
Installation |
Easy |
Common Diameter Selection
|
Diameter |
Typical Applications |
|
1 mm – 2 mm |
Small safety cables, control cables |
|
3 mm – 5 mm |
Equipment restraint cables |
|
6 mm – 8 mm |
Industrial safety systems |
|
10 mm+ |
Heavy-duty protection applications |
Core Options
Galvanized Steel Core
Recommended for:
Outdoor safety cables
Industrial applications
Equipment restraint systems
Advantages:
High strength
Good durability
Cost-effective
PVC Coated Option
Available coating:
Transparent PVC
Black PVC
Colored PVC
Benefits:
Additional corrosion protection
Safer handling
Improved appearance
Reduced surface damage
Typical Application
Safety Restraint Systems
Used for:
Secondary equipment support
Safety attachment cables
Anti-drop systems
Machine component retention
01
Industrial Equipment Safety
Applications:
Machinery protection
Tool tethering
Equipment securing
Overhead component safety cables
02
Fall Protection Accessories
Used for:
Safety lifeline components
Temporary protection systems
Work platform safety systems
03
Agricultural Fencing & Boundaries
Applications:
Farm boundaries
Livestock areas
Agricultural protection systems
04
Mechanical Control Systems
Used for:
Pulling mechanisms
Operating cables
Adjustment systems
05
End Fitting Options
Loop End Assembly
Available:
- Soft loop
- Thimble eye
- Pressed loop
Advantages:
- Easy installation
- Protects cable from bending stress
- Suitable for hooks and anchors
Swaged Terminal Assembly
Advantages:
- High-strength connection
- Compact design
- Professional appearance
Applications:
- Safety assemblies
- Industrial systems
Threaded End Fittings
Options:
- Threaded studs
- Eye terminals
- Fork terminals
- Ball fittings
Applications:
- Adjustable safety systems
- Equipment installation
Accessories Available
Solite can supply complete cable assemblies with:
- Wire rope clips
- Thimbles
- Shackles
- Hooks
- Turnbuckles
- Safety connectors
Quality Assurance
Each 7x19 Galvanized Core Safety Rope is inspected before shipment.
Available documents:
- EN 10204 Type 3.1 Material Certificate
- Tensile Strength Test Report
- Breaking Load Test Report
- Diameter Inspection Report
- Zinc Coating Thickness Report
- Rope Construction Inspection
- Assembly Pull Test Report
- Final Quality Inspection Report
Third-party inspection available:
- SGS
- TÜV
- Bureau Veritas (BV)
- Intertek
Packaging
Standard export packaging:
- Wooden Reel
- Steel Reel
- Plastic Reel
- Coil Packaging
- Protective Wrapping
- Customized OEM Labels
Packaging is designed to prevent corrosion, deformation, and surface damage during transport.
Why Choose Solite?
- 15+ years wire rope manufacturing experience
- Professional galvanized safety cable production
- Customized diameters and lengths
- Complete cable assembly capability
- Precision swaging processing
- Strict quality control system
- Factory-direct OEM supplier worldwide
