Crane & Lifting Wire Rope

General-purpose lifting rope with robust outer wires and good resistance to external wear.

6×19 wire rope is widely used for general lifting and hoisting applications. Its relatively larger outer wires provide a durable outer surface, making this construction suitable where abrasion resistance and reliable general-purpose performance are important.

Typical Applications:

Cranes Hoists Winches Construction

Flexible wire rope designed for repeated bending over sheaves and drums.

6×36 wire rope contains a greater number of smaller wires within each strand, generally providing higher flexibility and bending fatigue performance than 6×19 constructions. It is suitable for lifting systems involving frequent rope movement and repeated sheave bending.

Typical Applications: Cranes Hoists Winches Material Handling

Multi-strand construction for flexible lifting and machinery applications.

8×19 wire rope provides a flexible multi-strand construction with good bending performance and rope stability. It is suitable for lifting machinery and industrial systems where repeated rope movement and sheave interaction are important.

Typical Applications: Lifting Machinery Cranes Winches

35(W)x7 Compacted Wire Rope

High-density construction for demanding crane and port lifting applications.

35(W)x7 compacted wire rope is designed for heavy-duty lifting systems requiring high metallic cross-sectional area, high breaking force, rope stability, and resistance to repeated bending. Compacted strands create a dense and relatively smooth outer surface for demanding operating conditions.

Typical Applications: Port Cranes Heavy Cranes Mining Industrial Lifting

Rotation Resistant Wire Rope

Designed to reduce rotational tendency when lifting suspended loads.

Rotation-resistant wire ropes use specialized strand arrangements to reduce torque and rotational behavior during lifting. They are suitable for applications where load stability and controlled rope behavior are critical.

Typical Applications: Tower Cranes High-Rise Construction Mobile Cranes

Crane & Hoist Wire Rope

Wire rope solutions selected according to crane and hoisting equipment requirements.

Crane and hoist wire ropes must be matched to working load, reeving arrangement, sheave diameter, drum configuration, operating cycles, and equipment manufacturer specifications. SOLITE supplies multiple constructions for different lifting systems.

Equipment: Overhead Cranes Tower Cranes Gantry Cranes Hoists

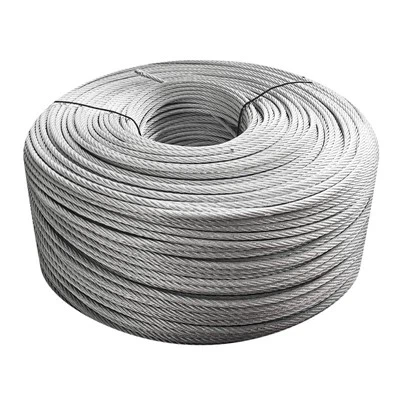

Galvanized Lifting Wire Rope

Zinc-coated steel wire rope for outdoor and corrosion-exposed lifting applications.

Galvanized lifting wire rope uses a zinc-coated wire surface to improve resistance to atmospheric corrosion. It can be supplied in multiple constructions and core configurations for outdoor lifting equipment and demanding environments.

Typical Applications: Construction Outdoor Cranes Ports Mining

High-Strength Steel Wire Rope

High breaking force for demanding lifting loads and industrial applications.

High-strength steel wire rope is manufactured using high-tensile steel wires and engineered constructions to provide high minimum breaking force relative to rope size. The appropriate tensile grade should be selected according to equipment design and applicable requirements.

Typical Applications: Heavy Cranes Mining Port Equipment Industrial Lifting

Not Sure Which Wire Rope You Need?

Send us your application, rope diameter, working load, construction, core type, rope length, and sheave/drum information. Our technical team can help identify a suitable wire rope specification.
