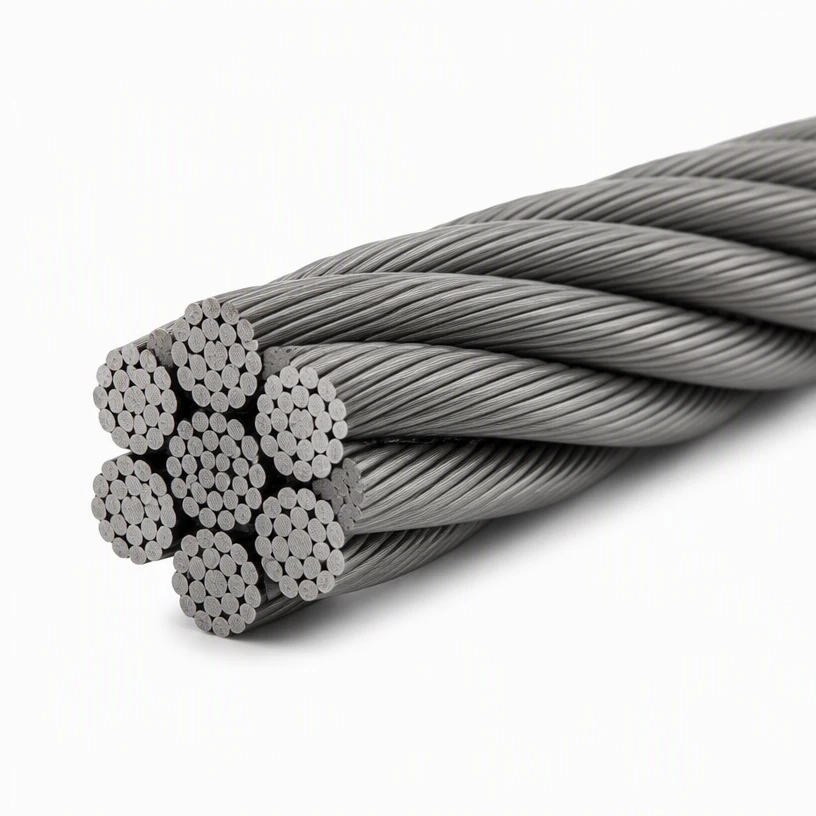

Products Description
The Heavy Duty Mining Steel Cable is engineered to withstand the extreme demands of mining operations, offering exceptional strength, abrasion resistance, and long service life. Manufactured from premium high-carbon steel wire, this wire rope is designed for continuous operation under heavy loads, harsh environments, and severe working conditions.
Suitable for both underground and surface mining, the cable provides reliable performance in mine hoisting systems, draglines, winches, conveyors, and heavy-duty material handling equipment.
Product Features
High Breaking Strength
Manufactured from high-carbon steel with tensile grades of 1770 MPa, 1960 MPa, and 2160 MPa, providing high load capacity for heavy-duty mining and lifting operations.
Enhanced Abrasion Resistance
Designed with optimized wire configurations and durable steel materials to withstand continuous friction and wear, helping extend rope service life in harsh mining environments.
Improved Fatigue Resistance
The optimized strand design reduces internal stress and improves resistance to repeated bending cycles during operation over sheaves and drums.
Strong Crush Resistance
Available with Independent Wire Rope Core (IWRC) constructions, providing better structural support and improved resistance to deformation during multi-layer drum winding.
Corrosion Protection Options
Available in different surface finishes to suit various working environments:Bright (Ungalvanized),Electro Galvanized,Hot-Dip Galvanized
Additional lubrication options are available to reduce internal friction and provide added protection against corrosion in wet or abrasive conditions.
Various Rope Constructions Available
A wide range of rope constructions are available to meet different mining equipment requirements, including:6×36 IWRC,6×37 IWRC,8×K36WS,35Wx7,18×7
Customized constructions based on specific equipment and operating conditions
Technical Specifications
|
Item |
Specification |
|
Product Name |
Heavy Duty Mining Steel Cable |
|
Material |
High Carbon Steel |
|
Construction |
6×36 IWRC, 6×37 IWRC, 8×K36WS, 35Wx7, Customized |
|
Core |
IWRC (Independent Wire Rope Core) |
|
Tensile Strength |
1770 / 1960 / 2160 MPa |
|
Surface Finish |
Bright / Electro Galvanized / Hot-Dip Galvanized |
|
Diameter Range |
8 mm – 90 mm (Custom Sizes Available) |
|
Lay Direction |
Right Regular Lay, Right Lang Lay, Left Lay |
|
Lubrication |
Standard or Customized |
|
Manufacturing Standards |
EN 12385, ISO 2408, GB/T 8918, ASTM A1023 (Optional) |
Click here for detailed inventory and specifications!
Typical Applications
Mine Hoisting Systems
Used in underground and surface mine hoisting equipment for lifting personnel, materials, and ore. The rope is designed to handle high working loads and repeated operating cycles in deep mining environments.
Draglines, Shovels and Excavators
Suitable for large mining machinery, including draglines, electric shovels, and hydraulic excavators. The robust construction helps withstand heavy pulling forces, shock loads, and frequent movement during excavation operations.
Winches and Hoisting Equipment
Applied in industrial winching systems and heavy lifting equipment where reliable pulling performance and resistance to fatigue are required for continuous operation.
Ore Handling and Material Handling Systems
Used in mining material transport systems, including ore handling equipment, loading systems, and lifting installations. The rope construction provides durability when exposed to abrasive materials and heavy-duty working conditions.
Conveyor and Processing Equipment
Suitable for mining conveyor systems and related equipment that require steel cables with stable performance under long-term operation and mechanical stress.
Drilling Rigs and Quarry Operations
Used in drilling, quarrying, and extraction equipment where the cable is exposed to dust, vibration, impact loads, and harsh outdoor environments.
Industrial Heavy Lifting Applications
Also suitable for heavy lifting systems in ports, construction sites, steel plants, and other industrial environments requiring high-strength steel wire ropes.
Quality Assurance
Every wire rope is manufactured under strict quality control procedures and inspected throughout the production process to ensure consistent quality and performance.
Available documentation includes:
EN 10204 Type 3.1 Mill Test Certificate
Material Certificate
Tensile Test Report
Dimensional Inspection Report
Factory Inspection Report
Packing List
Third-party inspection services are available upon request.
Why Choose Solite?
Professional steel wire rope manufacturer with extensive mining industry experience
Advanced production equipment and precision manufacturing
Strict quality management system
Factory-direct pricing and reliable supply
Fast production and global delivery
Custom diameters, constructions, and packaging available
OEM & ODM manufacturing services
Professional technical support for mining applications
