Products Description

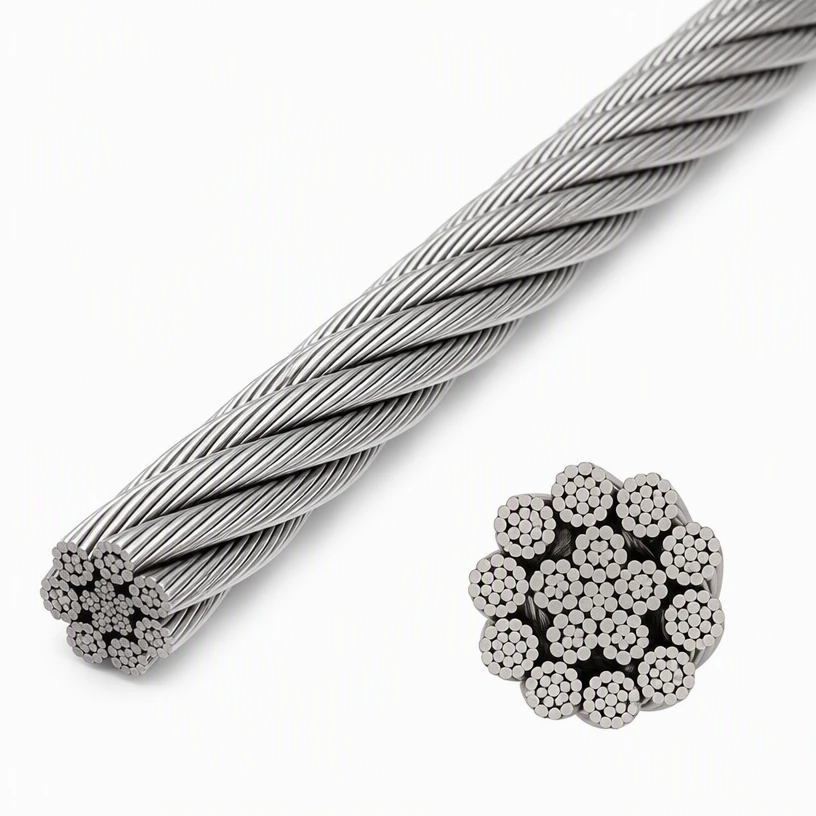

The 7x19 Stainless Steel Guardrail Cable is a flexible and durable stainless steel wire rope designed for guardrail systems, safety barriers, pedestrian protection, cable fencing, architectural railings, and outdoor security applications. Manufactured with a 7×19 construction, the cable provides excellent flexibility, fatigue resistance, and corrosion protection while maintaining reliable tensile performance.
Solite supplies OEM 7×19 stainless steel guardrail cables in AISI 304 and AISI 316 stainless steel, with customized diameters, lengths, coatings, and complete cable assemblies for infrastructure, commercial, and architectural projects.
Flexible 7×19 Wire Rope Construction
The 7×19 structure consists of 7 strands with 19 wires per strand, providing superior flexibility compared with rigid 1×19 cables.
Advantages:
- High flexibility
- Excellent bending performance
- Good fatigue resistance
- Smooth installation around curves
- Stable tensile strength
- Suitable for long-term outdoor use
Stainless Steel Material Options
AISI 316 Stainless Steel
Recommended for harsh outdoor and coastal environments
Advantages:
- Excellent saltwater corrosion resistance
- Superior chloride protection
- Suitable for marine and coastal guardrails
- Long service life in exposed locations
Applications:
- Coastal walkways
- Bridges
- Marine facilities
- Waterfront barriers
AISI 304 Stainless Steel
Suitable for general outdoor applications
Advantages:
- Good corrosion resistance
- Attractive stainless appearance
- Cost-effective solution
Applications:
- Commercial guardrails
- Park barriers
- Indoor safety systems
Technical Specifications
|
Item |
Specification |
|
Product Name |
7x19 Stainless Steel Guardrail Cable |
|
Construction |
7×19 |
|
Material |
AISI 304 / AISI 316 Stainless Steel |
|
Diameter Range |
2 mm – 16 mm |
|
Surface Finish |
Bright / Polished / Satin |
|
Tensile Grade |
1570 MPa / 1770 MPa |
|
Flexibility |
High |
|
Core Type |
Stainless Steel Core |
|
Length |
Customized |
|
Standard |
EN 12385 / ASTM A1023 / Custom |
Common Diameter Options
|
Diameter |
Typical Applications |
|
2 mm – 3 mm |
Light safety barriers |
|
4 mm |
Standard guardrail systems |
|
5 mm – 6 mm |
Outdoor protection barriers |
|
8 mm |
Heavy-duty guardrails |
|
10 mm+ |
Structural safety applications |
Construction Comparison
|
Construction |
Flexibility |
Typical Application |
|
1×19 |
Low |
Straight tension railing |
|
7×7 |
Medium |
General railing systems |
|
7×19 |
High |
Flexible guardrail cables |
7×19 stainless steel cable is ideal for guardrail systems requiring both flexibility and durability.
Third-party inspection available
Cable Assembly Options
Swaged End Assembly
Features:
High-strength permanent connection
Clean architectural appearance
Reliable outdoor performance
Applications:
Guardrail systems
Bridge barriers
Safety fences
Threaded Tension Assembly
Available:
Fork terminals
Eye terminals
Stud terminals
Turnbuckles
Advantages:
Adjustable tension
Easy maintenance
Suitable for long cable sections
Loop End with Thimble
Benefits:
Protects cable from bending stress
Improves service life
Compatible with hooks and shackles
Complete Guardrail Cable System
Available:
Stainless steel cable
Tensioners
Terminals
Posts
Mounting hardware
Surface Finish Options
Bright Stainless Finish
Advantages:
Clean metallic appearance
Corrosion-resistant surface
Standard outdoor finish
Mirror Polished Finish
Suitable for:
Luxury architectural projects
Premium public spaces
Advantages:
High-gloss appearance
Enhanced aesthetics
PVC Coated Stainless Cable
Advantages:
Extra protection
Prevents scratches
Improves visibility and safety
Available colors:
Transparent
Black
White
Typical Applications
Road & Pedestrian Guardrails
Used for:
Pedestrian bridges
Walkways
Elevated platforms
Public safety barriers
Architectural Guardrail Systems
Applications:
Balcony protection
Stair railings
Terrace barriers
Deck safety systems
Marine & Coastal Protection
Used for:
Harbor walkways
Marina railings
Waterfront barriers
Offshore facilities
Landscape Projects
Applications:
Park fencing
Garden barriers
Outdoor structures
Cable fences
Why Choose Solite?
why choose us?
15+ years stainless steel wire rope manufacturing experience
Professional guardrail cable production capability
AISI 304 / 316 stainless steel options
Customized cable assemblies and fittings
Advanced swaging equipment
Strict quality inspection system
Factory-direct OEM supply worldwide
one-stop solution
professional team
high quality
High flexibility and fatigue resistance
Excellent corrosion resistance
Suitable for outdoor exposure
Attractive stainless appearance
Easy installation with fittings
Custom lengths available
Complete assembly solutions
OEM manufacturing capability
Each 7x19 Stainless Steel Guardrail Cable is inspected before shipment.
Available documents:
EN 10204 Type 3.1 Material Certificate
Stainless Steel Chemical Composition Report
Tensile Strength Test Report
Diameter Inspection Report
Surface Finish Inspection Report
Rope Construction Inspection
Terminal Pull Test Report
Final Assembly Inspection Report
Third-party inspection available:
SGS
TÜV
Bureau Veritas (BV)
Intertek
Standard export packaging:
Wooden Reel
Plastic Reel
Coil Packaging
Protective Film
Carton Packaging
Customized OEM Labels
Special packaging prevents scratches and deformation during transport.
