Products Description

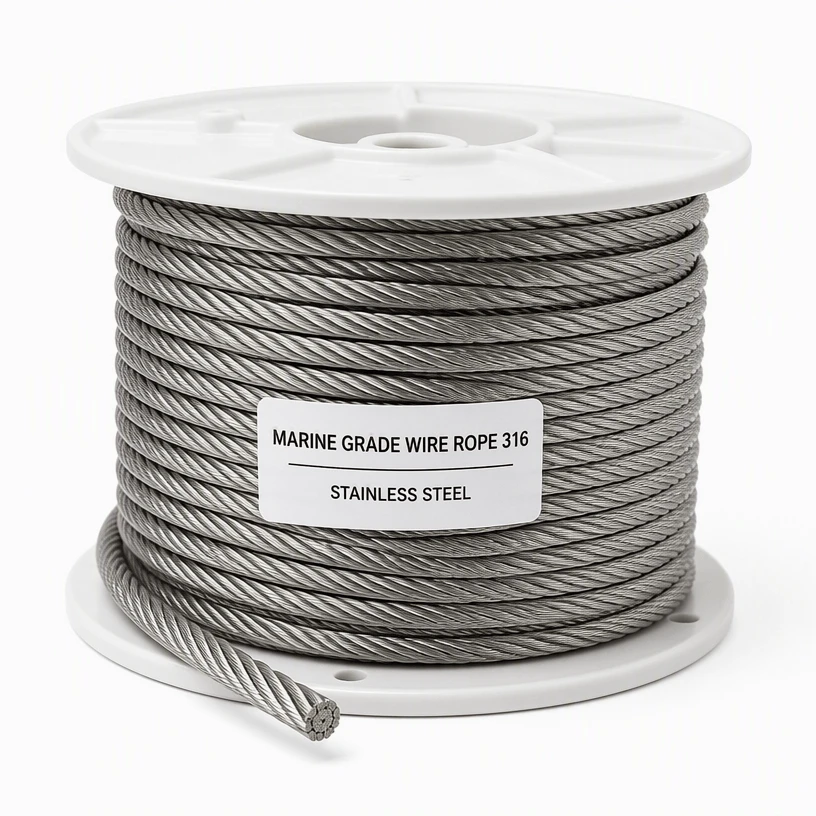

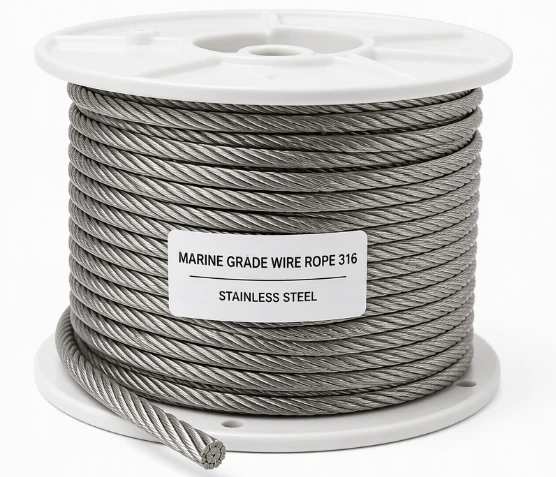

The Marine Grade Wire Rope 316 is a premium stainless steel cable manufactured from AISI 316 / 316L marine-grade stainless steel, specifically designed for saltwater, offshore, coastal, and high-corrosion environments. With excellent resistance to chloride corrosion, pitting, and oxidation, this wire rope provides reliable performance for yacht rigging, marine hardware, offshore structures, and architectural applications.
Solite supplies OEM 316 marine grade wire ropes with customized construction, diameter, length, surface finish, and complete terminal assemblies for marine equipment manufacturers, yacht builders, and engineering contractors.
AISI 316 Marine Stainless Steel Performance
AISI 316 stainless steel contains molybdenum (Mo), providing enhanced corrosion resistance compared with standard 304 stainless steel.
Advantages:
- Excellent seawater corrosion resistance
- Superior salt spray resistance
- High resistance to pitting corrosion
- Suitable for permanent outdoor exposure
- Maintains stainless appearance in harsh environments
- Reduced maintenance frequency
Stainless Steel Material Options
AISI 316 Stainless Steel
Standard marine-grade option
Recommended for:
Yacht applications
Offshore structures
Coastal buildings
Marine safety systems
Advantages:
Strong corrosion resistance
High durability
Premium surface finish
Long service life
AISI 316L Stainless Steel
Recommended for:
Welded marine assemblies
Offshore fabrication
Chemical and marine engineering projects
Advantages:
Lower carbon content
Improved weld corrosion resistance
Suitable for demanding environments
Wire Rope Construction Options
1×19 316 Stainless Steel Wire Rope
Features:
High tensile strength
Low elongation
Rigid structure
Applications:
Yacht standing rigging
Cable railing
Structural tension cables
01
7×7 316 Stainless Steel Wire Rope
Features:
Medium flexibility
Balanced strength
Good installation performance
Applications:
Marine railings
Safety cables
Deck systems
02
7×19 316 Stainless Steel Wire Rope
Features:
High flexibility
Excellent fatigue resistance
Suitable for repeated bending
Applications:
Yacht control cables
Pulley systems
Winch cables
03
6×19 / 6×36 316 Stainless Steel Wire Rope
Features:
Higher breaking load
Better wear resistance
Heavy-duty capability
Applications:
Marine lifting equipment
Offshore machinery
Industrial marine systems
04
Technical Specifications
|
Item |
Specification |
|
Product Name |
Marine Grade Wire Rope 316 |
|
Material |
AISI 316 / 316L Stainless Steel |
|
Construction |
1×19 / 7×7 / 7×19 / 6×19 / 6×36 |
|
Diameter Range |
1 mm – 20 mm+ |
|
Tensile Grade |
1570 MPa / 1770 MPa |
|
Surface Finish |
Bright / Polished / Mirror Finish |
|
Core Type |
Stainless Steel Core / Fiber Core |
|
Corrosion Resistance |
Excellent |
|
Length |
Customized |
|
Standard |
EN 12385 / ASTM A1023 |
Diameter Options
|
Diameter |
Typical Marine Applications |
|
1 mm – 2 mm |
Control cables, safety wires |
|
3 mm – 5 mm |
Yacht railing, deck systems |
|
6 mm – 8 mm |
Rigging applications |
|
10 mm – 12 mm |
Heavy marine equipment |
|
14 mm+ |
Offshore engineering systems |
Marine Cable Assembly Options
Swaged Terminal Assembly
Advantages:
High-strength connection
Permanent installation
Professional marine appearance
Applications:
Yacht rigging
Mast cables
Structural tension systems
Fork Terminal Assembly
Features:
Secure pin connection
High load capability
Common in yacht rigging
Applications:
Standing rigging
Mast support systems
Eye Terminal Assembly
Advantages:
Easy connection
Suitable for shackles and fittings
Reliable marine installation
Turnbuckle Assembly
Benefits:
Adjustable tension
Easy maintenance
Precise rigging adjustment
Available:
Fork turnbuckles
Eye turnbuckles
Jaw terminals
Surface Finish Options
Mirror Polished Finish
Suitable for:
Luxury yachts
Architectural projects
Visible marine components
Advantages:
Premium reflective appearance
Smooth surface
Enhanced aesthetics
Bright Finish
Suitable for:
General marine applications
Advantages:
Clean stainless appearance
Good corrosion protection
PVC / Nylon Coated Marine Cable
Advantages:
Extra protection
Reduced friction
Prevents scratching
Available:
Transparent
Black
White
Custom colors
Fast delivery for urgent projects
Typical Applications
Yacht & Sailing Industry
Used for:
Standing rigging
Mast support cables
Yacht railing systems
Deck safety cables
Marine accessories
Offshore Engineering
Applications:
Offshore platforms
Marine structures
Ocean equipment
Corrosion-resistant support systems
Marine Construction
Used for:
Floating docks
Harbor facilities
Coastal walkways
Waterfront structures
Architectural Applications
Applications:
Stainless steel cable railing
Glass balustrades
Coastal buildings
Decorative tension systems
Why Choose Us
Why Choose Solite?
15+ years stainless steel wire rope manufacturing experience
Professional marine cable production capability
AISI 316 / 316L stainless steel expertise
Custom marine cable assemblies
Advanced swaging and terminal processing
Strict material and quality control
Factory-direct OEM supplier worldwide
Marine-grade AISI 316 stainless steel
Excellent saltwater corrosion resistance
High tensile strength
Suitable for harsh environments
Multiple rope constructions available
Premium stainless finish
Custom cable assemblies supported
Factory OEM production
Each Marine Grade Wire Rope 316 is inspected before shipment.
Available documents:
EN 10204 Type 3.1 Material Certificate
Stainless Steel Chemical Composition Report
Tensile Strength Test Report
Diameter Inspection Report
Surface Finish Inspection Report
Rope Construction Inspection
Terminal Pull Test Report
Final Assembly Inspection Report
Third-party inspection available:
SGS
TÜV
Bureau Veritas (BV)
Intertek
Standard export packaging:
Wooden Reel
Plastic Reel
Coil Packaging
Protective Film
Carton Packaging
Customized OEM Labels
Special surface protection prevents scratches and maintains corrosion resistance during transportation.
