Products Description

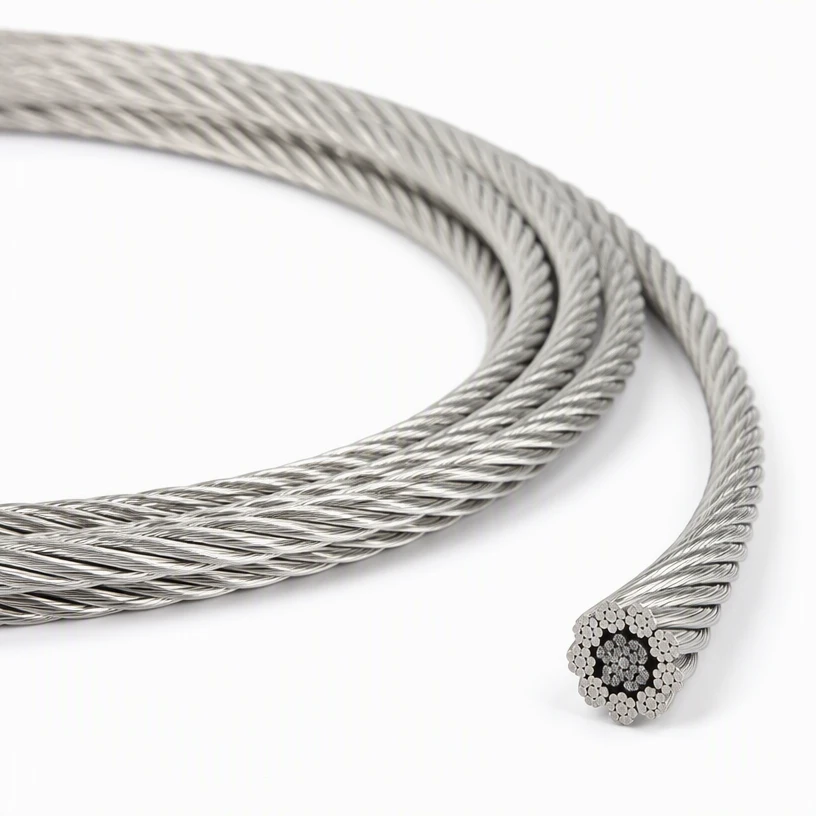

The 7x19 Stainless Steel Marine Rope is a highly flexible stainless steel wire rope designed for marine rigging, yacht applications, offshore equipment, architectural tension systems, and corrosion-resistant cable assemblies. Manufactured with a 7×19 construction, this rope consists of seven strands with nineteen wires per strand, providing an excellent combination of high flexibility, fatigue resistance, and tensile strength.
Solite supplies OEM 7×19 stainless steel marine ropes in AISI 304 and AISI 316 grades, with customized diameters, lengths, coatings, and end fittings for demanding marine and industrial applications.
High Flexibility 7×19 Construction
The 7×19 structure provides superior bending performance compared with rigid constructions such as 1×19.
Advantages:
- Excellent flexibility
- Good fatigue resistance
- Smooth operation through pulleys
- Suitable for dynamic movement
- Reduced bending stress
- Long service life
Premium Stainless Steel Material
AISI 316 Stainless Steel
Recommended for marine environments.
Benefits:
Excellent saltwater corrosion resistance
Strong resistance to pitting and oxidation
Suitable for offshore applications
Maintains appearance in harsh environments
Longer service life compared with standard steel rope
AISI 304 Stainless Steel
Suitable for:
General outdoor applications
Indoor architectural projects
Less aggressive environments
Advantages:
Good corrosion resistance
Bright stainless appearance
Cost-effective solution
Technical Specifications
|
Item |
Specification |
|
Product Name |
7x19 Stainless Steel Marine Rope |
|
Construction |
7×19 |
|
Material |
AISI 304 / AISI 316 Stainless Steel |
|
Surface Finish |
Bright / Polished |
|
Rope Diameter |
1 mm – 20 mm+ |
|
Core Type |
Stainless Steel Core / Fiber Core |
|
Tensile Grade |
1570 MPa / 1770 MPa |
|
Lay Direction |
Right Hand / Left Hand |
|
Length |
Customized |
|
Standard |
EN 12385 / ASTM A1023 / Custom |
Common Diameter Range
Available sizes:
|
Diameter |
Typical Applications |
|
1 mm – 2 mm |
Safety cables, control systems |
|
3 mm – 5 mm |
Marine equipment, railing systems |
|
6 mm – 8 mm |
Yacht rigging, outdoor structures |
|
10 mm – 12 mm |
Heavy marine applications |
|
14 mm+ |
Industrial and engineering projects |
Mechanical Performance
Typical advantages of 7×19 construction:
- Higher flexibility than 1×19 rope
- Better resistance to repeated bending
- Smooth operation around sheaves and pulleys
- Suitable for moving applications
- Stable breaking load performance
End Fitting & Assembly Options
Swaged Terminal Assembly
Features:
High-strength permanent connection
Clean appearance
Suitable for professional marine installations
Applications:
Yacht rigging
Cable railing
Architectural structures
Loop Eye with Thimble
Benefits:
Protects rope from deformation
Reduces bending wear
Compatible with shackles and hooks
Threaded Terminal Assembly
Available:
Fork terminals
Eye terminals
Stud terminals
Turnbuckle fittings
Applications:
Adjustable tension systems
Marine rigging
Structural cable systems
Custom Stainless Steel Hardware
Options:
Shackles
Hooks
Turnbuckles
Cable ends
Eye fittings
Coating & Surface Options
Bare Stainless Finish
Advantages:
Natural corrosion resistance
Bright appearance
Suitable for visible installations
PVC Coated Stainless Steel Rope
Benefits:
Additional protection
Prevents scratching
Improved appearance
Available colors:
Transparent
Black
White
Custom colors
Typical Applications
Marine Industry
Used for:
Yacht rigging
Sailboat control cables
Boat railing systems
Marine safety cables
Deck equipment
Offshore Applications
Used for:
Offshore platforms
Marine engineering equipment
Corrosion-resistant tension systems
Ocean environment installations
Architectural Projects
Applications:
Stainless steel cable railing
Glass balustrade systems
Suspension structures
Decorative tension cables
Outdoor Equipment
Used for:
Shade structures
Safety barriers
Outdoor display systems
Cable-supported structures
Why Choose Us
Why Choose Solite?
Over 15 years of stainless steel wire rope manufacturing experience
Professional marine cable production capability
AISI 304 / 316 stainless steel options
Custom lengths and terminal assemblies
Advanced swaging and cable processing equipment
Strict quality control system
Factory-direct OEM supply
one-stop solution
professional team
high quality
AISI 316 marine-grade stainless steel option
Excellent corrosion resistance
High flexibility and fatigue resistance
Suitable for dynamic applications
Attractive stainless appearance
Multiple diameter options
Custom assemblies available
OEM production capability
Each 7×19 Stainless Steel Marine Rope is inspected before shipment.
Available documents:
EN 10204 Type 3.1 Material Certificate
Stainless Steel Chemical Composition Report
Tensile Strength Test Report
Diameter Inspection Report
Surface Finish Inspection
Rope Construction Inspection
Assembly Pull Test Report
Final Quality Inspection Report
Third-party inspection services by SGS, TÜV, Bureau Veritas (BV), or Intertek are available upon request.
Standard export packaging:
Wooden Reel
Plastic Reel
Coil Packaging
Protective Film
Carton Packaging
Customized OEM Labels
