Products Description

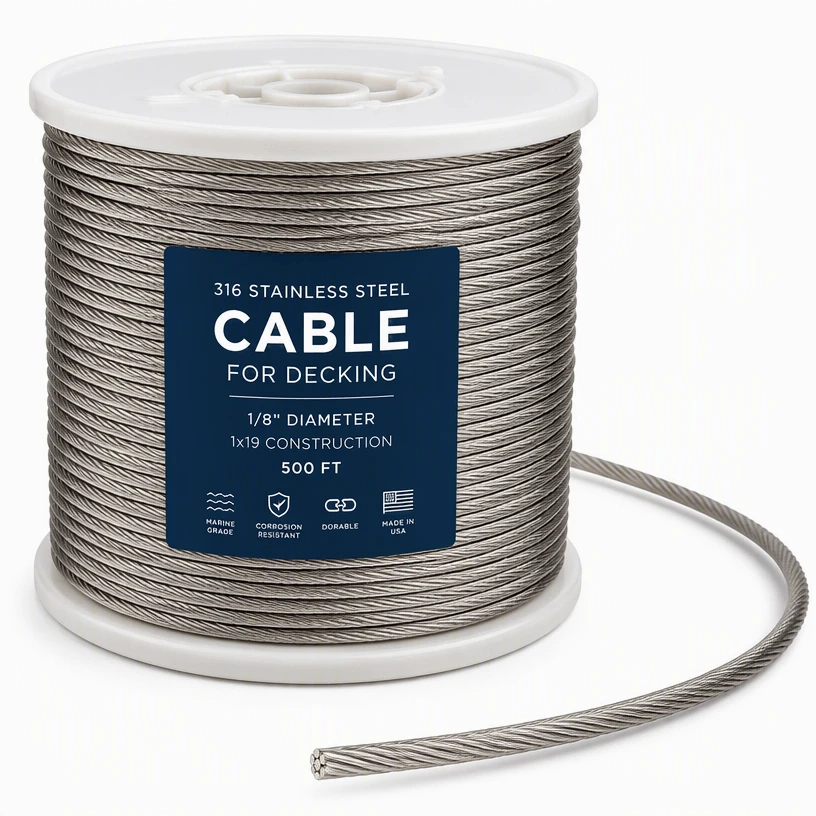

The Stainless Steel Cable for Decking is a corrosion-resistant wire rope solution designed for deck railings, balcony barriers, outdoor handrails, terrace systems, and architectural decking projects. Manufactured from premium AISI 304 or AISI 316 stainless steel, this cable provides excellent durability, clean appearance, and reliable tension performance for residential, commercial, and marine environments.
Solite supplies OEM stainless steel decking cables with customized rope construction, diameter, length, surface finish, and complete railing hardware assemblies to meet different architectural and engineering requirements.
Corrosion-Resistant Outdoor Performance
Designed for long-term outdoor exposure.
Advantages:
- Excellent rust resistance
- Suitable for rain and humidity environments
- Good resistance to UV and weather exposure
- Low maintenance requirements
- Long service life
- Maintains modern stainless appearance
Stainless Steel Material Options
AISI 316 Stainless Steel
Recommended for coastal and marine decking applications
Advantages:
Superior saltwater corrosion resistance
Excellent chloride resistance
Suitable for waterfront properties
Better performance in harsh outdoor environments
Applications:
Oceanfront decks
Marina walkways
Yacht platforms
Coastal buildings
AISI 304 Stainless Steel
Recommended for general outdoor decking
Advantages:
Good corrosion resistance
Attractive stainless finish
Cost-effective solution
Applications:
Residential decks
Garden structures
Commercial outdoor areas
Wire Rope Construction Options
1×19 Stainless Steel Cable
Features:
High tensile strength
Low elongation
Excellent straightness
Recommended for:
Straight deck railing systems
Tension cable applications
Modern architectural designs

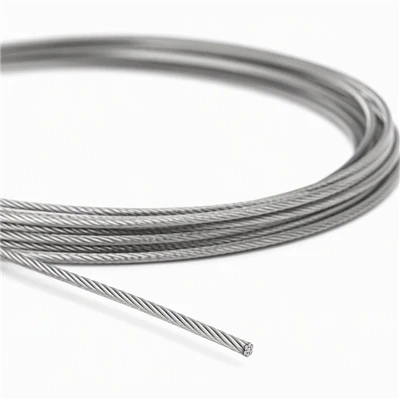

7×7 Stainless Steel Cable
Features:
Balanced flexibility and strength
Easier installation
Suitable for various railing layouts
Recommended for:
Deck railings
Balcony systems
Outdoor barriers
7×19 Stainless Steel Cable
Features:
High flexibility
Better fatigue resistance
Suitable for curved designs
Recommended for:
Complex decking structures
Dynamic cable systems
Technical Specifications
|
Item |
Specification |
|
Product Name |
Stainless Steel Cable for Decking |
|
Material |
AISI 304 / AISI 316 Stainless Steel |
|
Construction |
1×19 / 7×7 / 7×19 |
|
Diameter Range |
2 mm – 12 mm |
|
Surface Finish |
Bright / Polished / Satin |
|
Tensile Grade |
1570 MPa / 1770 MPa |
|
Length |
Customized |
|
Core Type |
Stainless Steel Core |
|
Application |
Deck Railing / Outdoor Structure |
|
Standard |
EN 12385 / ASTM A1023 / Custom |
Common Diameter Options
|
Diameter |
Typical Use |
|
2 mm |
Decorative decking cables |
|
3 mm |
Residential railing systems |
|
4 mm |
Standard deck railing applications |
|
5 mm |
Commercial outdoor structures |
|
6 mm |
Heavy-duty railing systems |
|
8 mm+ |
Structural applications |
Third-party inspection available
Cable Railing Assembly Options
Swaged Terminal System
Advantages:
High-strength connection
Clean architectural appearance
Professional installation
Applications:
Deck railing
Balcony systems
Stair handrails
01
Threaded Tension System
Available:
Fork terminals
Eye terminals
Stud fittings
Turnbuckles
Benefits:
Adjustable cable tension
Easy maintenance
Suitable for long cable runs
02
Loop End with Thimble
Advantages:
Protects cable from bending stress
Suitable for outdoor hardware connections
Improves service life
03
Complete Deck Cable Kit
Available components:
Stainless steel cable
Terminal fittings
Tensioners
Turnbuckles
Posts and accessories
04
Surface Finish Options
Mirror Polished Finish
Suitable for:
Luxury decks
High-end architectural projects
Advantages:
Premium reflective appearance
Smooth surface
Satin Finish
Advantages:
Modern appearance
Reduced glare
Matches contemporary designs
PVC Coated Stainless Cable
Benefits:
- Added protection
- Reduced scratching
- Improved safety
Available:
- Transparent
- Black
- White
Typical Applications
Outdoor Deck Railings
Used for:
Residential decks
Rooftop terraces
Garden platforms
Patio barriers
01
Commercial Buildings
Applications:
Hotels
Restaurants
Shopping centers
Public outdoor spaces
02
Coastal & Marine Decking
Used for:
Marina walkways
Waterfront platforms
Yacht docks
Beach properties
03
Architectural Projects
Applications:
Cable balustrades
Glass railing systems
Modern building facades
Landscape structures
04
Why Choose Us
Why Choose Solite?
15+ years steel wire rope manufacturing experience
Professional stainless steel cable railing solutions
AISI 304 / 316 material options
Custom cable lengths and fittings
Complete decking cable assembly capability
Strict quality control system
Factory-direct OEM supply worldwide
one-stop solution
professional team
high quality
Excellent outdoor corrosion resistance
Clean stainless steel appearance
Low maintenance
High strength and durability
Suitable for coastal environments
Easy integration with railing hardware
Custom lengths and assemblies available
OEM project support
Each Stainless Steel Cable for Decking is inspected before shipment.
Available documents:
EN 10204 Type 3.1 Material Certificate
Stainless Steel Chemical Analysis Report
Tensile Strength Test Report
Diameter Inspection Report
Surface Finish Inspection Report
Rope Construction Inspection
Terminal Pull Test Report
Final Assembly Inspection Report
Third-party inspection available:
SGS
TÜV
Bureau Veritas (BV)
Intertek
Standard export packaging:
Wooden Reel
Plastic Reel
Coil Packaging
Protective Film
Carton Packaging
Customized OEM Labels
Special protection prevents scratches and deformation during transportation.
