Introduction
The 6x19 Galvanized General Industrial Rope is a versatile steel wire rope designed for general industrial use, lifting equipment, mechanical systems, winches, cranes, and material handling applications. Manufactured with a 6×19 construction, this rope provides a reliable balance of strength, flexibility, abrasion resistance, and cost efficiency.
Solite supplies OEM 6×19 galvanized steel wire ropes with customized diameter, length, core type, tensile grade, lubrication, and packaging options for industrial distributors, equipment manufacturers, and engineering projects.
Inquire About a Detailed Custom Solution
Product Features

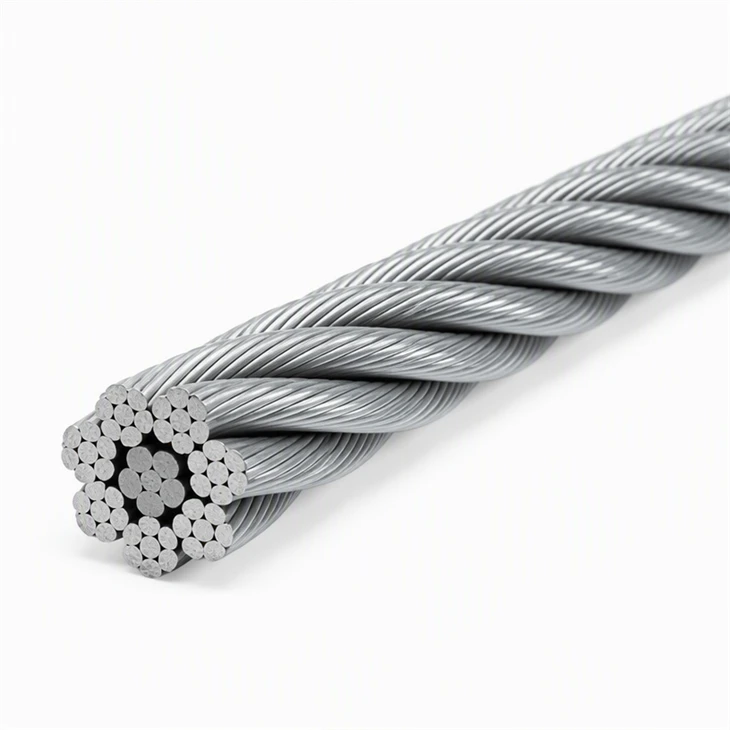

Balanced 6×19 Wire Rope Construction
The 6×19 structure consists of 6 strands with 19 wires per strand, providing a proven combination of strength and flexibility.
Advantages:
- Good breaking strength
- Balanced flexibility
- Reliable wear resistance
- Easy handling and installation
- Suitable for general mechanical applications
- Cost-effective industrial solution
Galvanized Surface Protection
The zinc coating provides additional protection against environmental exposure.
Advantages:
- Improved corrosion resistance
- Longer service life compared with bright wire rope
- Suitable for outdoor applications
- Better resistance to moisture and oxidation
- Reduced maintenance requirements
Wire Rope Construction Options
6×19 FC (Fiber Core)
Features:
- Better flexibility
- Good shock absorption
- Suitable for moderate loads
Applications:
- Winches
- Manual lifting equipment
- General machinery
6×19 IWRC (Independent Wire Rope Core)
Features:
- Higher strength
- Better crushing resistance
- Improved dimensional stability
Applications:
- Cranes
- Hoists
- Heavy-duty machinery
6×19 IWS (Independent Wire Strand Core)
Features:
- Higher breaking load
- Improved fatigue resistance
Applications:
- Industrial lifting equipment
- Mechanical systems requiring higher performance
Technical Specifications
| Technical Specifications | |
| Product Name | 6x19 Galvanized General Industrial Rope |
| Construction | 6×19 |
| Material | Galvanized Carbon Steel |
| Core Options | FC / IWRC / IWS |
| Diameter Range | 1 mm – 60 mm+ |
| Tensile Grade | 1570 MPa / 1770 MPa / 1960 MPa |
| Surface | Zinc Galvanized |
| Lubrication | Industrial Wire Rope Lubricant |
| Length | Customized |
| Standard | EN 12385 / ASTM A1023 / ISO |
| Common Diameter Applications | |
| Diameter | Typical Applications |
| 3 mm – 6 mm | Small winches, machinery cables |
| 8 mm – 16 mm | Hoists, lifting equipment |
| 18 mm – 32 mm | Cranes and industrial machinery |
| 36 mm+ | Heavy-duty lifting systems |
| Technical Characteristics | |
| Feature | Performance |
| Flexibility | Medium |
| Abrasion Resistance | Good |
| Corrosion Resistance | Good |
| Crushing Resistance | Higher with IWRC |
| Fatigue Resistance | Medium |
| Cost Efficiency | Excellent |
Need detailed product specifications and customization options? Click here to contact us!
Applications
Industrial Lifting Equipment
Used for:
- Hoists
- Winches
- Lifting machines
- Material handling equipment
Cranes & Construction Equipment
Applications:
- Tower cranes
- Mobile cranes
- Gantry cranes
- Construction machinery
Mechanical Transmission Systems
Used for:
- Pulling systems
- Control mechanisms
- Industrial machinery
Agriculture & Forestry Equipment
Applications:
- Logging equipment
- Farm machinery
- Cable pulling systems
Marine & Outdoor Equipment
Used for:
- Mooring applications
- Outdoor machinery
- General industrial environments
- End Connection Options
Wire Rope Sling Assembly
Available:
- Eye loop sling
- Thimble eye sling
- Flemish eye sling
- Swaged sling
Custom 6x19 Galvanized General Industrial Rope
Fittings
Options:
- Hooks
- Shackles
- Thimbles
- Turnbuckles
- Terminals
Custom Length Cutting
Available:
- Coil supply
- Fixed-length cutting
- Custom packaging
- OEM labeling
Surface Treatment Options
Hot-Dip Galvanized
Advantages:
- Thick zinc coating
- Higher corrosion protection
- Suitable for outdoor environments
Electro Galvanized
Advantages:
- Smooth appearance
- Suitable for indoor applications
Lubrication Options
Available:
- Dry lubricant
- Heavy-duty grease
- Low-temperature lubricant
- Marine lubricant
Quality Assurance
Each 6x19 Galvanized General Industrial Rope undergoes inspection.
Available documents:
- EN 10204 Type 3.1 Material Certificate
- Tensile Strength Test Report
- Breaking Load Test Report
- Diameter Inspection Report
- Zinc Coating Thickness Report
- Rope Construction Inspection
- Lubrication Inspection
- Final Quality Inspection
Third-party inspection available:
- SGS
- TÜV
- Bureau Veritas (BV)
- Intertek
Packaging
Standard export packaging:
- Wooden Reel
- Steel Reel
- Plywood Reel
- Coil Packaging
- Protective Wrapping
- Customized OEM Labels
Available reel sizes according to container loading requirements.
Why Choose Solite?
- 15+ years steel wire rope manufacturing experience
- Professional galvanized wire rope production
- FC / IWRC / IWS core options
- Customized diameter and length
- Complete lifting sling assembly capability
- Strict quality control system
- Factory-direct OEM supply worldwide
