Introduction
Flexible Galvanized Steel Wire Rope for General Industrial, Safety, Utility and Outdoor Applications
The 7x19 Galvanized Multi Purpose Rope is a versatile and flexible steel wire rope designed for a wide range of industrial, commercial, agricultural, marine, safety, and utility applications. Manufactured with a 7×19 construction and galvanized steel surface, this rope provides an excellent balance of flexibility, tensile strength, corrosion resistance, and durability.
Solite supplies OEM 7×19 galvanized multi-purpose wire ropes with customized diameter, length, tensile grade, lubrication, coating options, and complete cable assembly solutions.
Inquire About a Detailed Custom Solution
Product Features

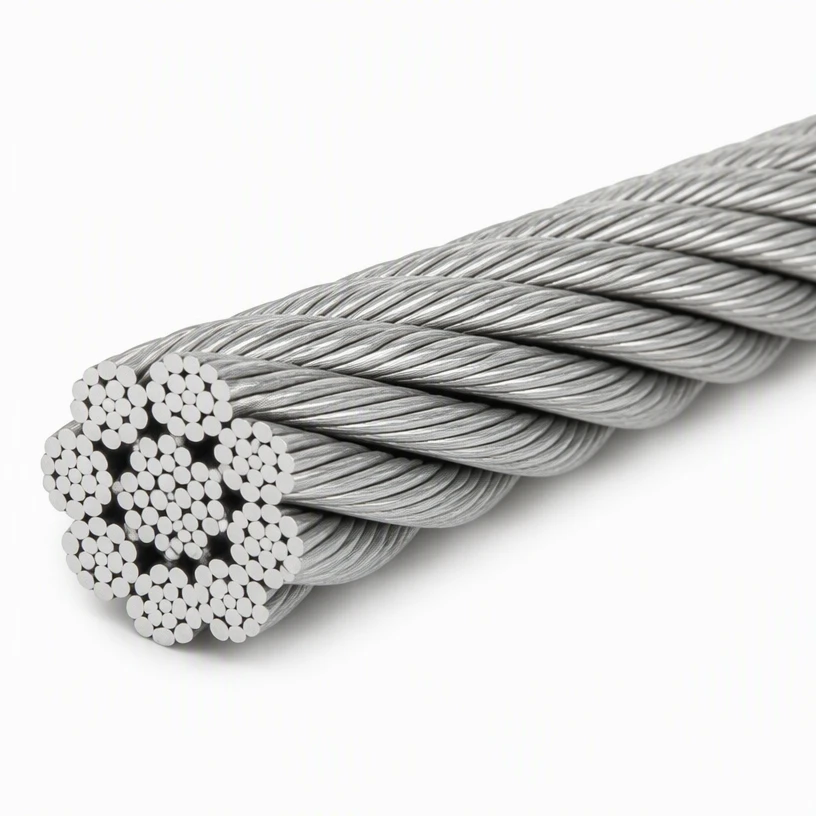

Flexible 7×19 Construction
The 7×19 structure consists of 7 strands with 19 wires per strand, providing superior flexibility compared with rigid wire rope constructions.
Advantages:
Excellent flexibility
Smooth operation over pulleys
Good fatigue resistance
Easy installation
Suitable for repeated bending
Stable mechanical performance
Galvanized Surface Protection
The zinc coating improves resistance against outdoor conditions.
Advantages:
Good corrosion resistance
Suitable for humid environments
Protects against rust and oxidation
Longer service life
Reduced maintenance requirements
Technical Specifications
Technical Specifications
|
Item |
Specification |
|
Product Name |
7x19 Galvanized Multi Purpose Rope |
|
Construction |
7×19 |
|
Material |
Galvanized Carbon Steel |
|
Core Options |
Fiber Core (FC) / Steel Core |
|
Diameter Range |
1 mm – 30 mm |
|
Tensile Grade |
1570 MPa / 1770 MPa / 1960 MPa |
|
Surface Treatment |
Galvanized Zinc Coating |
|
Lubrication |
Industrial Wire Rope Lubricant |
|
Length |
Customized |
|
Standard |
EN 12385 / ASTM A1023 |
Construction Performance
|
Feature |
Performance |
|
Flexibility |
★★★★★ |
|
Strength |
★★★★☆ |
|
Corrosion Resistance |
★★★★☆ |
|
Fatigue Resistance |
★★★★☆ |
|
Abrasion Resistance |
★★★☆☆ |
|
Versatility |
★★★★★ |
Common Diameter Selection
|
Diameter |
Typical Applications |
|
1 mm – 3 mm |
Control cables, safety cables |
|
4 mm – 6 mm |
Fencing, agricultural systems |
|
8 mm – 12 mm |
Industrial equipment, winches |
|
14 mm – 20 mm |
Heavy utility applications |
|
22 mm+ |
Industrial support systems |
Typical Application
General Industrial Use
Applications:
Machine control cables
Equipment restraint systems
Support cables
Mechanical assemblies
Advantages:
Reliable performance
Easy installation
Wide application range
01
Safety & Security Systems
Used for:
Safety barriers
Anti-drop cables
Equipment tethering
Protective systems
Benefits:
Strong and durable
Weather-resistant galvanized surface
02
Agricultural Applications
Applications:
Greenhouse structures
Vineyard support
Crop support systems
Farm fencing
Advantages:
Outdoor corrosion resistance
Long-term tension performance
03
Marine & Outdoor Applications
Used for:
Dock equipment
Outdoor support cables
Boat accessories
Coastal structures
Recommended:
Galvanized or stainless steel versions depending on environment
04
Fencing & Boundary Systems
Applications:
Security fencing
Animal enclosures
Cable barriers
Garden structures
05
End Fitting Options
Loop End Assembly
Available:
- Soft eye
- Thimble eye
- Pressed loop
Advantages:
- Easy installation
- Protects rope from bending damage
- Suitable for anchoring
Swaged Cable Assembly
Available:
- Threaded studs
- Eye terminals
- Fork terminals
Hooks
- Advantages:
- High connection strength
- Professional appearance
- Reliable performance
Hardware Accessories
Available:
- Wire rope clips
- Thimbles
- Shackles
- Turnbuckles
- Cable tensioners
Coating Options

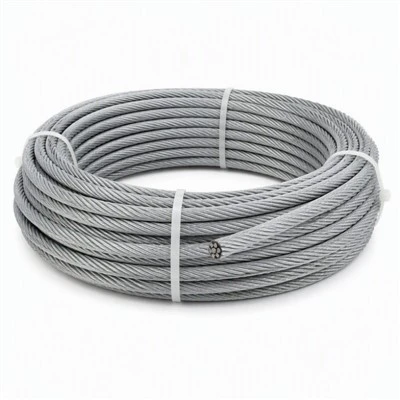

Standard Galvanized
Suitable for:
- General outdoor applications
- Industrial use
- Agricultural systems

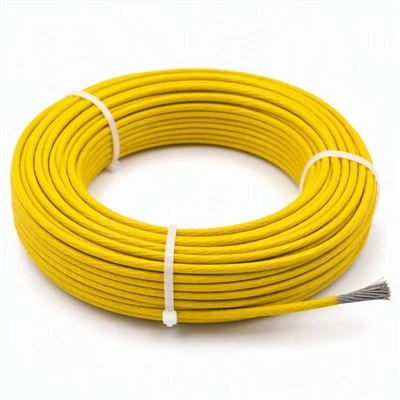

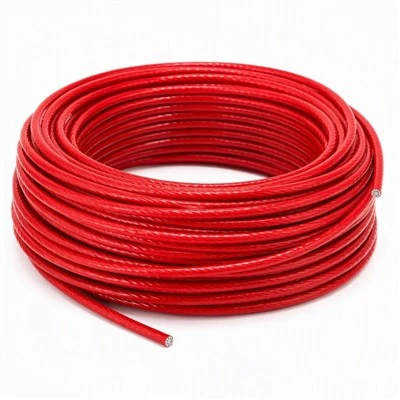

PVC Coated Version
Available colors:
- Transparent
- Black
- Green
- Red
- Custom colors
Benefits:
- Additional corrosion protection
- Improved appearance
- Safer handling
Advantages
Highly flexible 7×19 structure
Good corrosion resistance
Suitable for multiple industries
Excellent bending performance
Wide diameter range available
Custom length production
Complete cable assembly capability
OEM solutions available
Quality Assurance
Each 7x19 Galvanized Multi Purpose Rope is inspected before shipment.
Available documents:
- EN 10204 Type 3.1 Material Certificate
- Tensile Strength Test Report
- Breaking Load Test Report
- Diameter Inspection Report
- Zinc Coating Thickness Report
- Rope Construction Inspection
- Lubrication Inspection
- Final Quality Inspection Report
Third-party inspection available:
- SGS
- TÜV
- Bureau Veritas (BV)
- Intertek
Packaging
Standard export packaging:
- Plastic Reel
- Wooden Reel
- Steel Reel
- Coil Packaging
- Protective Wrapping
- Customized OEM Labels
Packaging can be optimized for container loading and customer requirements.
Why Choose Solite?
- 15+ years steel wire rope manufacturing experience
- Professional galvanized wire rope production
- 7×19 flexible rope specialization
- Customized diameter and length
- Complete cable assembly solutions
- Strict quality control system
- Factory-direct OEM supplier worldwide
