Introduction
General Purpose Galvanized Wire Rope for Utility, Construction and Industrial Applications

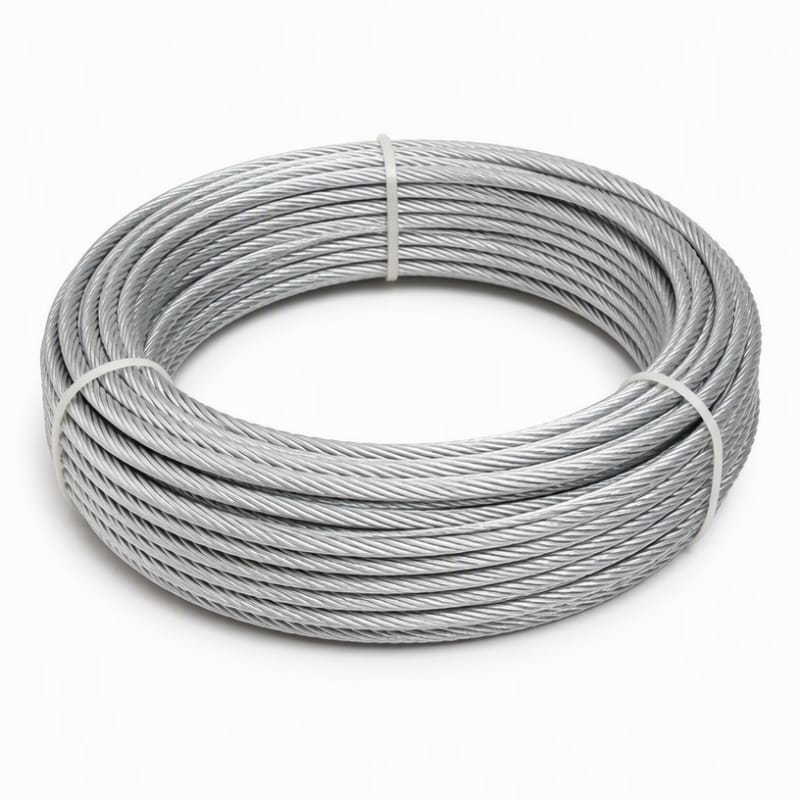

The Galvanized Utility Steel Wire Rope is a reliable and versatile steel cable designed for utility installations, construction support, agricultural systems, outdoor structures, general rigging, and industrial applications. Manufactured from high-carbon steel wire with a protective zinc galvanized coating, this wire rope provides a combination of strength, corrosion resistance, flexibility, and economical performance.
Solite supplies OEM galvanized utility steel wire ropes with customized diameter, construction, tensile grade, length, lubrication, reel packaging, and end fittings for distributors, contractors, and equipment manufacturers.
Inquire About a Detailed Custom Solution
Product Features
Durable Galvanized Steel Construction
Designed for reliable outdoor and industrial performance.
Advantages:
High tensile strength
Good corrosion resistance
Excellent load-bearing capability
Long service life
Suitable for repeated use
Cost-effective solution
Galvanized Surface Protection
The zinc coating provides protection against environmental exposure.
Advantages:
Prevents oxidation of steel wires
Improves resistance to moisture
Suitable for outdoor applications
Reduces maintenance requirements
Extends service life
Wire Rope Construction Options
1×7 Galvanized Steel Rope
Features:
Simple construction
High rigidity
Low elongation
Applications:
Support cables
Utility bracing
Tension wires
1×19 Galvanized Steel Rope
Features:
High tensile strength
Excellent dimensional stability
Low stretch
Applications:
Structural support
Guy wires
Utility tension systems
7×7 Galvanized Utility Cable
Features:
Balanced flexibility and strength
Easy installation
Applications:
General utility applications
Fence systems
Support cables
7×19 Galvanized Utility Cable
Features:
High flexibility
Better fatigue resistance
Applications:
Pulley systems
Moving equipment
Control cables
6×19 / 6×37 Industrial Wire Rope
Features:
Higher load capacity
Suitable for mechanical applications
Applications:
Hoisting
Winches
Construction equipment
Technical Specifications
Technical Specifications
|
Item |
Specification |
|
Product Name |
Galvanized Utility Steel Wire Rope |
|
Material |
Galvanized Carbon Steel |
|
Construction |
1×7 / 1×19 / 7×7 / 7×19 / 6×19 / 6×37 |
|
Core Options |
Fiber Core (FC) / Steel Core (IWRC) |
|
Diameter Range |
1 mm – 60 mm+ |
|
Tensile Grade |
1570 MPa / 1770 MPa / 1960 MPa |
|
Surface Treatment |
Zinc Galvanized |
|
Lubrication |
Industrial Lubricant |
|
Length |
Customized |
|
Standard |
EN 12385 / ASTM A1023 / ISO |
Common Diameter Selection
|
Diameter |
Typical Applications |
|
1 mm – 3 mm |
Utility supports, small tension cables |
|
4 mm – 8 mm |
Fence, agriculture, structural support |
|
10 mm – 20 mm |
Construction and industrial systems |
|
22 mm+ |
Heavy-duty utility applications |
Typical Application
Utility Support Systems
Used for:
Support cables
Guy wires
Structural bracing
Utility installations
01
Construction Applications
Applications:
Temporary support cables
Safety barriers
Site structures
Material handling systems
02
Agricultural Systems
Used for:
Greenhouse structures
Crop support cables
Farm fencing
Shade systems
03
Fencing & Boundary Systems
Applications:
Security fences
Agricultural boundaries
Cable barriers
Protective structures
04
Outdoor Structures
Used for:
Shade structures
Sign supports
Suspension systems
Decorative installations
05
End Connection Options
Loop End Assembly
Available:
- Soft eye
- Thimble eye
- Pressed loop
Advantages:
- Easy installation
- Protects rope end
- Suitable for anchoring
Swaged Cable Assembly
Advantages:
- High connection strength
- Clean appearance
- Reliable fixing
Applications:
- Structural systems
- Utility installations
Hardware Accessories
Available:
- Wire rope clips
- Thimbles
- Shackles
- Turnbuckles
- Hooks
Surface Treatment Options
Hot-Dip Galvanized
Advantages:
- Thick zinc coating
- Better outdoor corrosion resistance
- Suitable for harsh environments
Recommended for:
- Utility structures
- Coastal areas
- Outdoor installations
Electro Galvanized
Advantages:
- Smooth appearance
- Suitable for lighter applications
PVC Coated Option
Available colors:
- Black
- Green
- Transparent
- Custom colors
Benefits:
- Extra protection
- Improved appearance
- Safer handling
Advantages
Reliable galvanized corrosion protection
Wide range of constructions available
Suitable for outdoor environments
Good strength-to-cost ratio
Flexible customization options
Compatible with standard fittings
OEM production capability
Quality Assurance
Each Galvanized Utility Steel Wire Rope is inspected before shipment.
Available documents:
- EN 10204 Type 3.1 Material Certificate
- Tensile Strength Test Report
- Breaking Load Test Report
- Diameter Inspection Report
- Zinc Coating Thickness Report
- Rope Construction Inspection
- Lubrication Inspection
- Final Quality Inspection Report
Third-party inspection available:
- SGS
- TÜV
- Bureau Veritas (BV)
- Intertek
Packaging
Standard export packaging:
- Wooden Reel
- Steel Reel
- Plywood Reel
- Coil Packaging
- Protective Wrapping
- Customized OEM Labels
Packaging can be optimized for container loading and project requirements.
Why Choose Solite?
- 15+ years steel wire rope manufacturing experience
- Professional galvanized wire rope production
- Complete construction options
- Customized sizes and lengths
- End fitting and assembly capability
- Strict quality control system
- Factory-direct OEM supplier worldwide
