Introduction
Flexible Fiber Core Bright Steel Wire Rope for General Lifting, Machinery and Industrial Applications

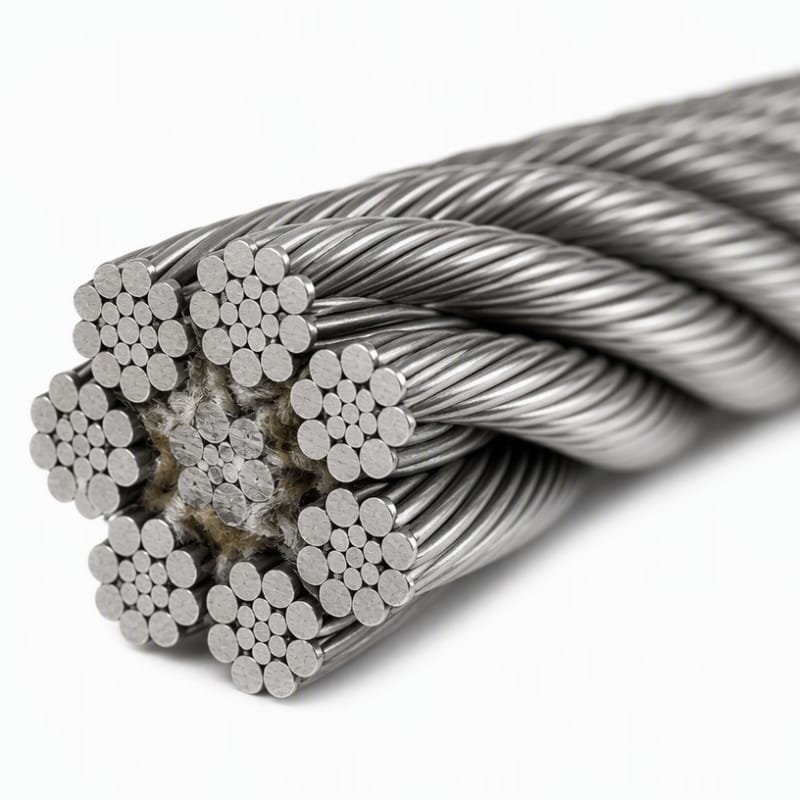

The 6x19 FC Bright Steel Cable is a versatile uncoated steel wire rope designed for general industrial lifting, hoisting equipment, winches, machinery systems, and material handling applications. Manufactured with a 6×19 construction and fiber core (FC), this cable provides a balanced combination of strength, flexibility, shock absorption, and economical performance.
Solite supplies OEM 6×19 FC bright steel wire ropes with customized diameter, length, tensile grade, lubrication, reel packaging, and end termination options for industrial distributors and equipment manufacturers.
Inquire About a Detailed Custom Solution
Product Features
6×19 Fiber Core Construction
The 6×19 structure consists of 6 strands with 19 wires per strand, providing a reliable balance between strength and flexibility.
Advantages:
Good breaking strength
Medium flexibility
Stable rope structure
Easy handling and installation
Suitable for general industrial use
Cost-effective solution
Fiber Core (FC) Advantages
The fiber core improves flexibility and provides internal cushioning.
Benefits:
Higher flexibility compared with steel core ropes
Better shock absorption
Helps maintain lubricant retention
Reduces bending stress
Smooth operation over sheaves
Bright Steel Surface
The bright finish means the wire rope has no galvanized coating and maintains a clean steel surface.
Advantages:
Economical compared with galvanized rope
Smooth surface finish
Suitable for indoor applications
Good mechanical performance
Easy lubrication maintenance
Technical Specifications
Technical Specifications
|
Item |
Specification |
|
Product Name |
6x19 FC Bright Steel Cable |
|
Construction |
6×19 |
|
Core Type |
Fiber Core (FC) |
|
Material |
High Carbon Steel Wire |
|
Surface Finish |
Bright / Uncoated |
|
Diameter Range |
3 mm – 60 mm+ |
|
Tensile Grade |
1570 MPa / 1770 MPa / 1960 MPa |
|
Lubrication |
Industrial Wire Rope Lubricant |
|
Length |
Customized |
|
Standard |
EN 12385 / ASTM A1023 / ISO |
Common Diameter Applications
|
Diameter |
Typical Application |
|
3 mm – 6 mm |
Small lifting devices, machinery cables |
|
8 mm – 16 mm |
Hoists, winches, material handling |
|
18 mm – 32 mm |
Industrial lifting equipment |
|
36 mm+ |
Heavy-duty machinery |
Performance Characteristics
|
Feature |
Performance |
|
Flexibility |
Medium |
|
Shock Absorption |
Excellent |
|
Abrasion Resistance |
Good |
|
Corrosion Resistance |
Limited (indoor use recommended) |
|
Breaking Strength |
Good |
|
Cost Efficiency |
Excellent |
Core Options Comparison
|
Type |
Feature |
Application |
|
6×19 FC |
Flexible, shock absorbing |
General lifting |
|
6×19 IWRC |
Higher strength |
Cranes and heavy loads |
|
6×37 FC |
More flexible |
Frequent bending |
Typical Application
Hoisting Equipment
Used for:
Electric hoists
Manual hoists
Lifting machines
Workshop equipment
01
Winch Systems
Applications:
Industrial winches
Pulling equipment
Mechanical handling systems
Recovery systems
02
Material Handling
Used for:
Factory lifting
Warehouse equipment
Loading systems
Transport machinery
03
General Machinery
Applications:
Mechanical operating systems
Support cables
Industrial equipment
04
End Connection Options
Wire Rope Sling Assembly
Available:
- Eye and eye sling
- Thimble eye sling
- Soft loop sling
- Swaged sling
Terminal Options
Available:
- Hooks
- Shackles
- Thimbles
- Sockets
- Turnbuckles
Custom Processing
Available:
- Cut-to-length service
- Rope assemblies
- OEM labeling
- Customized packaging
Surface Treatment Options
Hot-Dip Galvanized
Advantages:
- Thick zinc coating
- Better outdoor corrosion resistance
- Suitable for harsh environments
Recommended for:
- Utility structures
- Coastal areas
- Outdoor installations
Electro Galvanized
Advantages:
- Smooth appearance
- Suitable for lighter applications
PVC Coated Option
Available colors:
- Black
- Green
- Transparent
- Custom colors
Benefits:
- Extra protection
- Improved appearance
- Safer handling
Lubrication Options
Available:
- Standard industrial lubricant
- Heavy-duty grease
- Low-temperature lubricant
Benefits:
- Reduces internal friction
- Protects steel wires
- Improves fatigue resistance
- Extends service life
Quality Assurance
Each 6x19 FC Bright Steel Cable is inspected before shipment.
Available documents:
- EN 10204 Type 3.1 Material Certificate
- Tensile Strength Test Report
- Breaking Load Test Report
- Diameter Inspection Report
- Rope Construction Inspection
- Lubrication Inspection
- Surface Quality Inspection
- Final Inspection Report
Third-party inspection available:
- SGS
- TÜV
- Bureau Veritas (BV)
- Intertek
Packaging
Standard export packaging:
- Wooden Reel
- Steel Reel
- Plywood Reel
- Coil Packaging
- Protective Wrapping
- Customized OEM Labels
Packaging options can be adjusted according to customer loading requirements.
Why Choose Solite?
- 15+ years steel wire rope manufacturing experience
- Professional bright steel wire rope production
- FC and IWRC construction options
- Customized diameter and length
- Complete sling assembly capability
- Strict quality control system
- Factory-direct OEM supplier worldwide
