Introduction
Durable Coated Support Wire for Vineyards, Crop Training Systems and Agricultural Applications

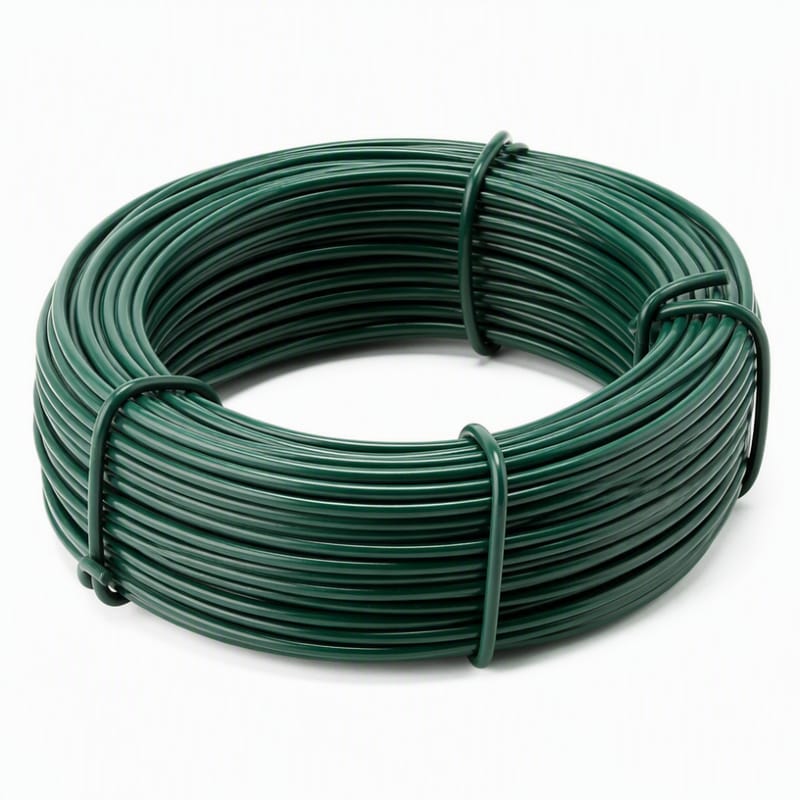

The PVC Coated Vineyard Steel Wire is a corrosion-resistant agricultural support cable designed for grape vineyards, fruit tree trellis systems, plant training structures, and agricultural support applications. Manufactured with a high-strength steel wire core and covered with a protective PVC coating, it provides excellent durability, flexibility, and protection against outdoor environmental conditions.
Solite supplies OEM PVC coated vineyard steel wires with customized wire diameter, coating thickness, color, length, tensile strength, and packaging options for vineyard installers, agricultural suppliers, and farming projects.
Inquire About a Detailed Custom Solution
Product Features
High Strength Steel Core
The internal steel wire provides reliable support for vines and crops.
Advantages:
High tensile strength
Good load-bearing capability
Maintains long-term tension
Suitable for outdoor agricultural environments
Easy installation and adjustment
PVC Protective Coating
The PVC layer improves performance in vineyard environments.
Advantages:
Protects against moisture and rust
Prevents direct contact damage to plants
Reduces wire surface abrasion
Improves weather resistance
Provides smoother handling
Available in different colors
Material Options
Galvanized Steel Core + PVC Coating
Recommended for:
Standard vineyard systems
Agricultural trellis structures
Outdoor crop support
Advantages:
Good corrosion resistance
Excellent cost performance
High tensile strength
Stainless Steel Core + PVC Coating
Recommended for:
Premium vineyards
Coastal agricultural areas
Long-life installations
Advantages:
Superior corrosion resistance
Extended service life
Better environmental performance
Construction Options
Single Steel Wire
Features:
Simple structure
High rigidity
Low elongation
Applications:
Vineyard trellis wires
Plant support lines
Crop guiding systems
1×19 PVC Coated Cable
Features:
High tensile stability
Low stretch
Excellent straight-line performance
Applications:
Main vineyard support wires
Long-span trellis systems
7×7 PVC Coated Cable
Features:
Flexible structure
Easy installation
Applications:
Curved support systems
Agricultural tension cables
7×19 PVC Coated Cable
Features:
High flexibility
Better fatigue resistance
Applications:
Movable crop systems
Pulley-operated agricultural structures
Technical Specifications
Technical Specifications
|
Item |
Specification |
|
Product Name |
PVC Coated Vineyard Steel Wire |
|
Core Material |
Galvanized Steel / Stainless Steel |
|
Construction |
Single Wire / 1×19 / 7×7 / 7×19 |
|
Coating Material |
PVC |
|
Wire Diameter |
1 mm – 8 mm |
|
Coating Thickness |
0.2 mm – 2 mm |
|
Tensile Grade |
1570 MPa / 1770 MPa |
|
Color |
Green / Black / Transparent / Custom |
|
Length |
Customized |
|
Standard |
EN 12385 / ASTM A1023 |
Common Sizes for Vineyard Applications
|
Wire Size |
Application |
|
1.5 mm – 2 mm |
Small plant support |
|
2.5 mm – 3 mm |
Vineyard trellis wire |
|
3.5 mm – 4 mm |
Main vine support wire |
|
5 mm+ |
Heavy-duty agricultural structures |
PVC Coating Color Options
Green PVC Coated Vineyard Wire
Advantages:
- Blends with vineyard surroundings
- Natural appearance
- Popular agricultural choice
Applications:
- Grape vineyards
- Garden structures
- Landscape systems
Black PVC Coated Wire
Advantages:
- Professional appearance
- Good UV resistance
- Suitable for commercial farms
Transparent PVC Coating
Advantages:
- Maintains steel appearance
- Suitable for architectural agricultural projects
Typical Application
Vineyard Trellis Systems
Used for:
Grape vine support
Horizontal trellis wires
Vertical training systems
Crop positioning
Benefits:
Supports vine growth
Maintains stable plant spacing
Improves cultivation efficiency
01
Fruit Tree Support Systems
Applications:
Apple orchards
Kiwi plantations
Berry farms
Climbing plants
02
Greenhouse Agriculture
Used for:
Plant guiding wires
Crop support structures
Curtain systems
03
Agricultural Fencing
Applications:
Farm boundaries
Livestock areas
Crop protection systems
04
End Fitting Options
Tensioning Components
Available:
- Turnbuckles
- Wire tensioners
- Clips
- Anchors
Benefits:
- Easy tension adjustment
- Stable installation
- Long-term performance
Loop End Assembly
Options:
- Soft loop
- Thimble eye
- Pressed loop
Applications:
- Support cable fixing
- Agricultural structures
Advantages
Corrosion-resistant PVC protection
Plant-friendly smooth surface
High tensile strength
Suitable for outdoor agricultural use
Reduces maintenance requirements
Custom colors available
Multiple construction options
OEM production capability
Quality Assurance
Each PVC Coated Vineyard Steel Wire is inspected before shipment.
Available documents:
- Steel Material Certificate
- Tensile Strength Test Report
- Diameter Inspection Report
- PVC Thickness Inspection Report
- Coating Adhesion Test
- Surface Appearance Inspection
- Final Quality Inspection Report
Third-party inspection available:
- SGS
- TÜV
- Bureau Veritas (BV)
- Intertek
Packaging
Standard export packaging:
- Plastic Reel
- Wooden Reel
- Coil Packaging
- Protective Film
- Carton Packaging
- Customized OEM Labels
Packaging prevents coating damage and deformation during transportation.
Why Choose Solite?
- 15+ years wire rope manufacturing experience
- Professional PVC coated cable production
- Agricultural application experience
- Customized diameter and coating solutions
- Complete tensioning accessories available
- Strict quality control system
- Factory-direct OEM supplier worldwide
