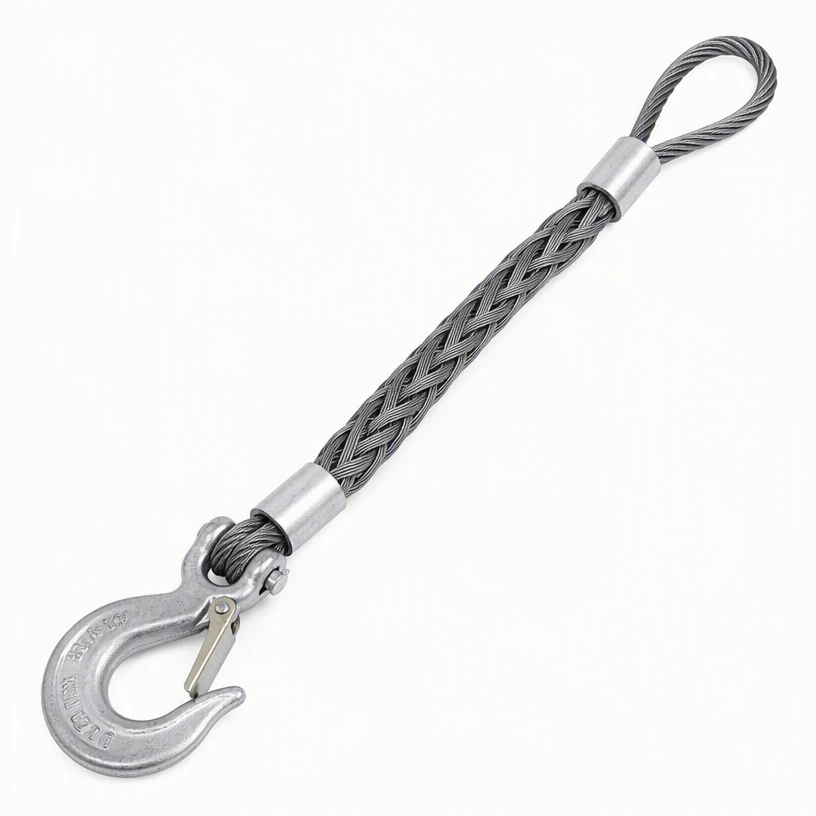

Flexible Braided Steel Wire Rope Sling with Hook End Fittings for Lifting Applications
The Braided Wire Rope Hook Sling is a high-strength flexible lifting assembly designed for material handling, rigging operations, construction lifting, and industrial applications. Manufactured using braided or multi-strand steel wire rope with professionally installed hook end fittings, this sling provides excellent flexibility, reliable load transfer, and enhanced durability in demanding lifting environments.
Solite provides customized wire rope hook sling solutions with various rope constructions, diameters, lengths, hooks, and termination methods according to customer requirements.
Product Features
The braided wire rope structure provides:
- Excellent flexibility
- Improved fatigue resistance
- Smooth bending performance
- Reduced stress concentration
- Better handling characteristics
- Long service life under repeated use
Suitable for applications requiring frequent bending and directional changes.
High-Strength Steel Wire Rope

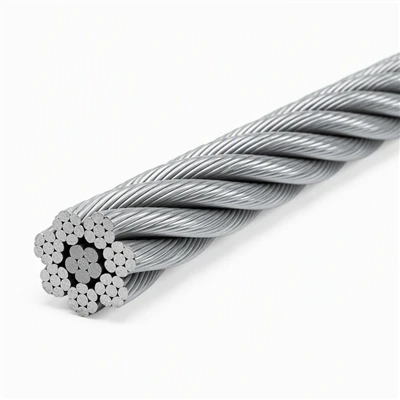

6×19 Construction
Advantages:
Good strength-to-flexibility ratio
Excellent abrasion resistance
General lifting applications
6×36 Construction
Advantages:
Higher flexibility
Improved fatigue resistance
Suitable for heavy-duty lifting
7×19 Construction
Advantages:
Superior flexibility
Smooth operation
Ideal for smaller lifting assemblies
Multi-Strand Non-Rotating Rope
Options:
19×7
35×7
Advantages:
Reduced rotation
Improved lifting stability
Suitable for crane applications
Hook End Fitting Options
Eye Hook
Features:
Simple connection method
Compatible with shackles and lifting systems
High load-bearing capacity
Swivel Hook
Benefits:
Reduces rope twisting
Improves lifting stability
Suitable for rotating loads
Safety Latch Hook
Features:
Prevents accidental disengagement
Enhanced operational safety
Widely used in industrial lifting
Custom Hook Assemblies
Available options:
Forged hooks
Clevis hooks
Self-locking hooks
Master link assemblies
Custom lifting hardware
Material Options
Galvanized Steel Wire Rope
Benefits:
- High tensile strength
- Good corrosion resistance
- Cost-effective
- Suitable for outdoor lifting operations
Stainless Steel Wire Rope
Available:
- AISI 304
- AISI 316
Benefits:
- Excellent corrosion resistance
- Premium appearance
- Suitable for marine and harsh environments
Technical Specifications
|
Product Name |
Braided Wire Rope Hook Sling |
|
Rope Material |
Galvanized Steel / Stainless Steel |
|
Rope Construction |
6×19 / 6×36 / 7×19 / 19×7 / 35×7 / Custom |
|
Diameter Range |
3 mm – 100 mm+ |
|
Sling Type |
Single Leg / Double Leg / Multi Leg / Endless |
|
Length |
Customized |
|
Hook Type |
Eye Hook / Swivel Hook / Safety Hook / Custom |
|
Core Type |
FC / IWRC |
|
Tensile Grade |
1570 / 1770 / 1960 MPa |
|
Safety Factor |
Customized According to Application |
|
Standards |
EN 13414 / EN 12385 / ASME B30.9 / GB/T 16762 |
Typical Applications
The Braided Wire Rope Hook Sling is widely used in
Construction & Lifting
Tower cranes
Mobile cranes
Building construction
Steel structure installation
Heavy equipment lifting
Industrial Handling
Machinery movement
Factory lifting operations
Equipment installation
Material transportation
Marine & Port Operations
Shipyard lifting
Port cranes
Offshore equipment
Marine engineering
Heavy Industry
Mining operations
Steel plants
Energy projects
Large-scale infrastructure
About the Product
- High flexibility for complex lifting operations
- Strong hook connection system
- Excellent fatigue resistance
- Reliable load-bearing performance
- Custom rope diameter and length
- Multiple hook and hardware options
- Suitable for harsh working environments
- OEM manufacturing capability
Each Braided Wire Rope Hook Sling is manufactured and inspected according to strict quality requirements.
Available documentation:
- EN 10204 Type 3.1 Material Certificate
- Wire Rope Test Certificate
- Hook Material Certificate
- Breaking Load Test Report
- Proof Load Test Report
- Dimensional Inspection Report
- Assembly Inspection Report
- Packing List
Third-party inspection services by SGS, TÜV, Bureau Veritas (BV), or Intertek are available upon request.
Standard export packaging:
- Wooden Reel
- Steel Frame
- Pallet Packaging
- Protective Wrapping
- Individual Identification Labels
- Customized OEM Packaging
Each sling is securely packed to prevent damage during transportation.
