Heavy-Duty Pressed Steel Wire Rope Sling with Secure Loop Terminations

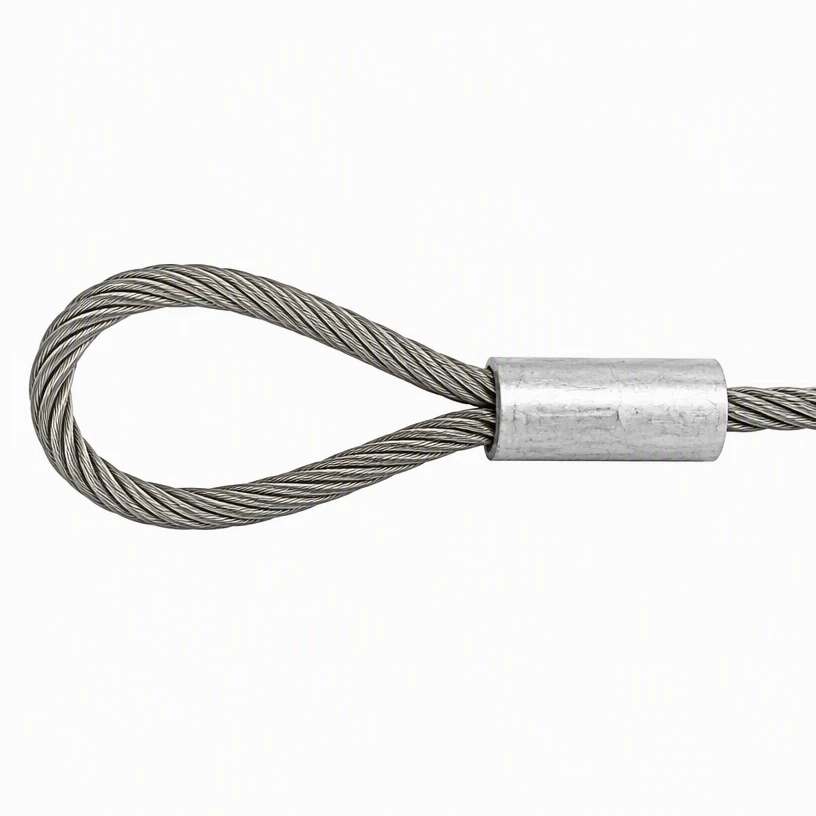

The Pressed Wire Rope Loop Sling is a high-strength lifting assembly manufactured by forming a secure loop eye and mechanically pressing a metal sleeve (ferrule) onto the wire rope to create a permanent termination. Designed for lifting, rigging, crane operations, and industrial material handling, this sling provides reliable load performance, excellent durability, and consistent connection strength.
Solite produces OEM pressed wire rope loop slings using galvanized steel wire rope or stainless steel wire rope, with customized rope diameter, length, loop size, ferrule type, and lifting configuration according to customer requirements.
Secure Pressed Ferrule Termination
The pressed sleeve connection is produced through controlled hydraulic pressing technology, creating a strong and permanent rope termination.
Benefits include:
- High connection efficiency
- Consistent pressing quality
- Compact and professional appearance
- Reduced installation complexity
- Reliable load transfer
- Improved operational safety
Each pressed loop is inspected to ensure dimensional accuracy and termination strength.
High-Strength Wire Rope Options
6×19 Steel Wire Rope
Features:
Good abrasion resistance
Balanced strength and flexibility
Suitable for general lifting applications
Applications:
Hoists
Winches
Construction lifting
6×36 Steel Wire Rope
Features:
Excellent flexibility
Superior fatigue resistance
Suitable for dynamic lifting operations
Applications:
Cranes
Heavy machinery lifting
Multi-layer drum systems
7×19 Steel Wire Rope
Features:
High flexibility
Smooth bending performance
Suitable for smaller lifting assemblies
19×7 / 35×7 Non-Rotating Wire Rope
Features:
Reduced rotation during lifting
Improved load stability
Suitable for high-rise lifting applications
Products Options
Material Options
Galvanized Steel Wire Rope
Advantages:
High tensile strength
Good corrosion resistance
Cost-effective industrial solution
Suitable for outdoor lifting
Stainless Steel Wire Rope
Available:
AISI 304 Stainless Steel
AISI 316 Stainless Steel
Advantages:
Excellent corrosion resistance
Suitable for marine and chemical environments
Premium appearance
Loop Termination Options
Standard Eye Loop
General lifting applications
Compatible with hooks and shackles
Thimble Eye Loop
Increased eye protection
Reduced bending stress
Extended rope service life
Available thimbles:
Galvanized thimble
Heavy-duty thimble
Stainless steel thimble
DIN 6899 thimble
Soft Loop Eye
Flexible connection
Suitable for specific rigging applications
Technical Specifications
|
Item |
Specification |
|
Product Name |
Pressed Wire Rope Loop Sling |
|
Rope Material |
Galvanized Steel / Stainless Steel |
|
Rope Construction |
6×19 / 6×36 / 7×19 / 19×7 / 35×7 / Custom |
|
Diameter Range |
3 mm – 100 mm+ |
|
Sling Type |
Single Leg / Double Leg / Endless / Custom |
|
Length |
Customized |
|
Core Type |
Fiber Core (FC) / IWRC |
|
Ferrule Material |
Aluminum / Steel / Custom |
|
Termination Method |
Hydraulic Pressed Sleeve |
|
Tensile Grade |
1570 / 1770 / 1960 MPa |
|
Safety Factor |
Customized |
|
Standards |
EN 13414 / EN 12385 / ASME B30.9 / GB/T 16762 |
Third-party inspection available
Typical Applications
Construction & Engineering
Tower crane lifting
Mobile crane operations
Steel structure installation
Bridge construction
Heavy equipment lifting
Industrial Manufacturing
Machinery movement
Factory equipment installation
Steel product handling
Production line maintenance
Port & Marine
Shipyard lifting
Port material handling
Offshore equipment lifting
Energy & Heavy Industry
Power plant construction
Mining equipment lifting
Large component handling
About the Product
Permanent pressed termination for reliable strength
High load capacity and durability
Excellent abrasion and fatigue resistance
Custom rope diameter and length available
Thimble protection options available
Suitable for demanding industrial environments
OEM production capability
Factory-direct customization
Each pressed wire rope loop sling undergoes strict inspection procedures.
Available quality documents:
EN 10204 Type 3.1 Material Certificate
Wire Rope Test Certificate
Ferrule Material Certificate
Breaking Load Test Report
Pressing Strength Test Report
Dimensional Inspection Report
Visual Inspection Report
Final Assembly Inspection Report
Packing List
Third-party inspection services by SGS, TÜV, Bureau Veritas (BV), or Intertek are available upon request.
Standard export packaging:
Wooden Reel
Steel Frame
Pallet Packaging
Protective Wrapping
Identification Labels
Customized OEM Packaging
Each sling is securely packed to prevent deformation and surface damage during transportation.
Why Choose Solite?
why choose us?
Over 15 years of steel wire rope manufacturing experience
Professional pressed sling assembly capability
Advanced hydraulic pressing equipment
Strict control of rope selection, pressing force, and dimensions
Customized lifting solutions based on customer requirements
Factory-direct supply with competitive pricing
Technical support for crane companies, rigging suppliers, and industrial customers
