Products Description

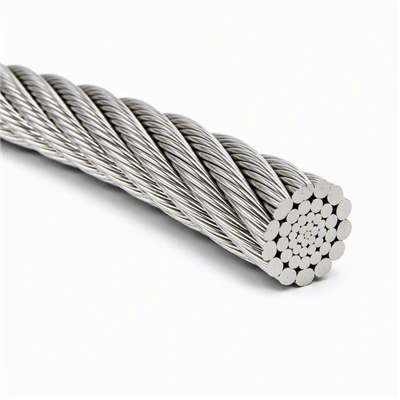

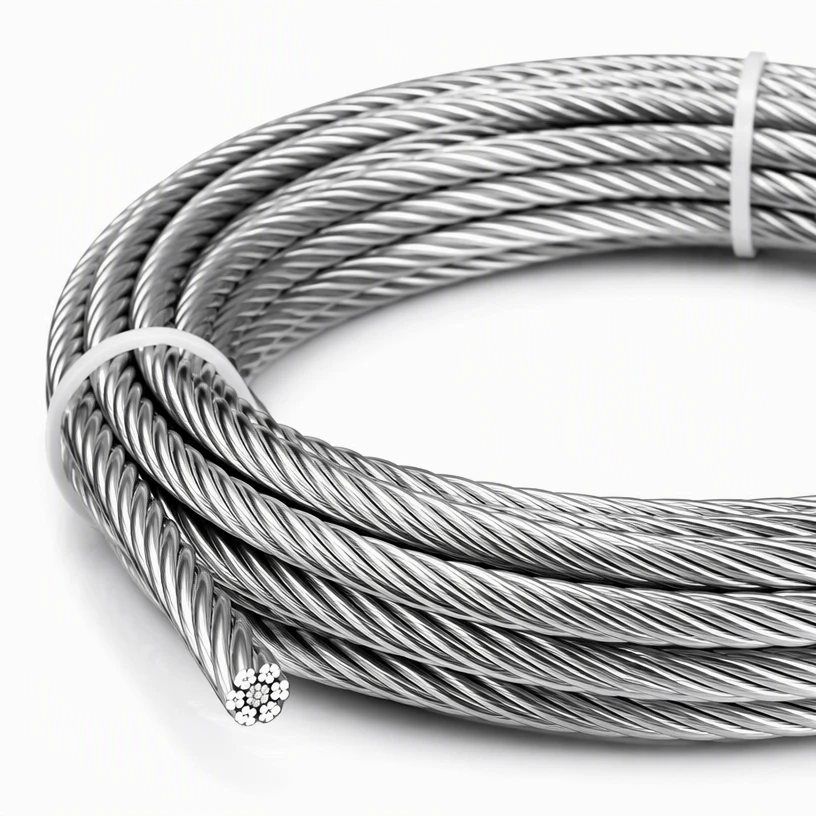

The AISI 316 Marine Grade Cable is a high-performance stainless steel wire rope engineered for saltwater, offshore, coastal, and harsh outdoor environments. Manufactured from AISI 316 stainless steel, this cable offers superior resistance to chloride corrosion, pitting, and oxidation, making it an ideal solution for marine rigging, yacht equipment, architectural structures, and corrosion-sensitive applications.
Solite provides OEM AISI 316 marine grade cables with customized wire rope construction, diameter, length, surface finish, coating, and terminal fittings to meet specific project requirements.
Superior Marine Corrosion Resistance
AISI 316 stainless steel contains molybdenum, providing enhanced corrosion protection compared with standard stainless steel grades.
Advantages:
- Excellent resistance to seawater corrosion
- Superior protection against salt spray
- High resistance to pitting corrosion
- Suitable for long-term outdoor exposure
- Maintains clean stainless appearance
Wire Rope Construction Options
1×19 Stainless Steel Cable
Features:
High tensile strength
Low elongation
Excellent straightness
High tension stability
Recommended for:
Cable railing
Architectural tension systems
Yacht standing rigging
01
7×7 Stainless Steel Cable
Features:
Balanced flexibility and strength
Good fatigue resistance
Suitable for general cable systems
Recommended for:
Marine safety cables
Outdoor barriers
Support cables
02
7×19 Stainless Steel Cable
Features:
High flexibility
Excellent bending performance
Suitable for dynamic movement
Recommended for:
Marine pulleys
Winch systems
Moving equipment cables
03
6×19 / 6×36 Stainless Steel Cable
Features:
Higher breaking force
Good abrasion resistance
Suitable for heavy-duty applications
Recommended for:
Marine lifting
Offshore equipment
Industrial applications
04
Material Specification
|
Item |
Specification |
|
Material Grade |
AISI 316 / 316L Stainless Steel |
|
Chemical Composition |
Cr-Ni-Mo Stainless Steel |
|
Corrosion Resistance |
Excellent |
|
Environment |
Marine / Offshore / Coastal |
|
Surface Finish |
Bright / Polished / Satin |
|
Magnetic Property |
Low Magnetic Response |
|
Temperature Resistance |
High |
Technical Specifications
|
Item |
Specification |
|
Product Name |
AISI 316 Marine Grade Cable |
|
Construction |
1×19 / 7×7 / 7×19 / 6×19 / 6×36 |
|
Diameter Range |
1 mm – 20 mm+ |
|
Tensile Grade |
1570 MPa / 1770 MPa |
|
Core Type |
Stainless Steel Core / Fiber Core |
|
Length |
Customized |
|
Surface |
Bright Stainless Finish |
|
Standard |
EN 12385 / ASTM A1023 / Custom |
Diameter Options
Common sizes:
|
Diameter |
Applications |
|
1 mm – 2 mm |
Safety cables, control cables |
|
3 mm – 5 mm |
Marine railing, yacht accessories |
|
6 mm – 8 mm |
Rigging systems, outdoor structures |
|
10 mm – 12 mm |
Heavy marine applications |
|
14 mm+ |
Engineering and offshore projects |
Terminal & Assembly Options
Swaged Terminal Assembly
Advantages:
High connection strength
Compact appearance
Professional marine installation
Applications:
Yacht rigging
Architectural cables
Tension structures
Threaded Terminal Assembly
Available:
Fork terminals
Eye terminals
Stud terminals
Turnbuckle connections
Benefits:
Adjustable tension
Easy installation
Suitable for structural applications
Loop Eye Assembly
Options:
Stainless steel thimble eye
Soft loop eye
Pressed eye termination
Advantages:
Easy connection
Protects cable end
Compatible with shackles and hooks
Custom Marine Fittings
Available:
Stainless steel shackles
Turnbuckles
Hooks
Cable terminals
Tensioners
Coating & Surface Options
Bare Stainless Steel Finish
Benefits:
Natural corrosion resistance
Premium appearance
Suitable for visible installations
PVC Coated Stainless Cable
Advantages:
Extra surface protection
Prevents scratching
Improved appearance
Available:
Transparent
Black
White
Custom colors
Typical Applications
Marine Industry
Used for:
Yacht rigging
Boat railing systems
Marine safety cables
Deck equipment
Ship accessories
01
Offshore Engineering
Applications:
Offshore platforms
Marine structures
Ocean equipment
Corrosion-resistant support systems
02
Architectural Applications
Used for:
Stainless steel cable railing
Glass balustrades
Suspension structures
Decorative tension cables
03
Coastal Construction
Applications:
Waterfront buildings
Bridges
Outdoor barriers
Coastal protection systems
04
Why Choose Us
Why Choose Solite?
Over 15 years of stainless steel wire rope manufacturing experience
Professional marine cable production capability
AISI 304 / 316 stainless steel options
Customized cable assemblies and fittings
Advanced swaging and terminal processing equipment
Strict quality control system
Factory-direct OEM supply worldwide
one-stop solution
professional team
high quality
Marine-grade AISI 316 stainless steel
Excellent saltwater resistance
High strength-to-weight ratio
Long outdoor service life
Attractive stainless finish
Multiple constructions available
Custom assemblies supported
Suitable for OEM projects
Each AISI 316 Marine Grade Cable is inspected before shipment.
Available documents:
EN 10204 Type 3.1 Material Certificate
Stainless Steel Chemical Analysis Report
Tensile Strength Test Report
Diameter Inspection Report
Surface Finish Inspection Report
Rope Construction Inspection
Assembly Pull Test Report
Final Quality Inspection Report
Third-party inspections by SGS, TÜV, Bureau Veritas (BV), or Intertek are available upon request.
Standard export packaging:
Wooden Reel
Plastic Reel
Coil Packaging
Protective Film
Carton Packaging
Customized OEM Labels
