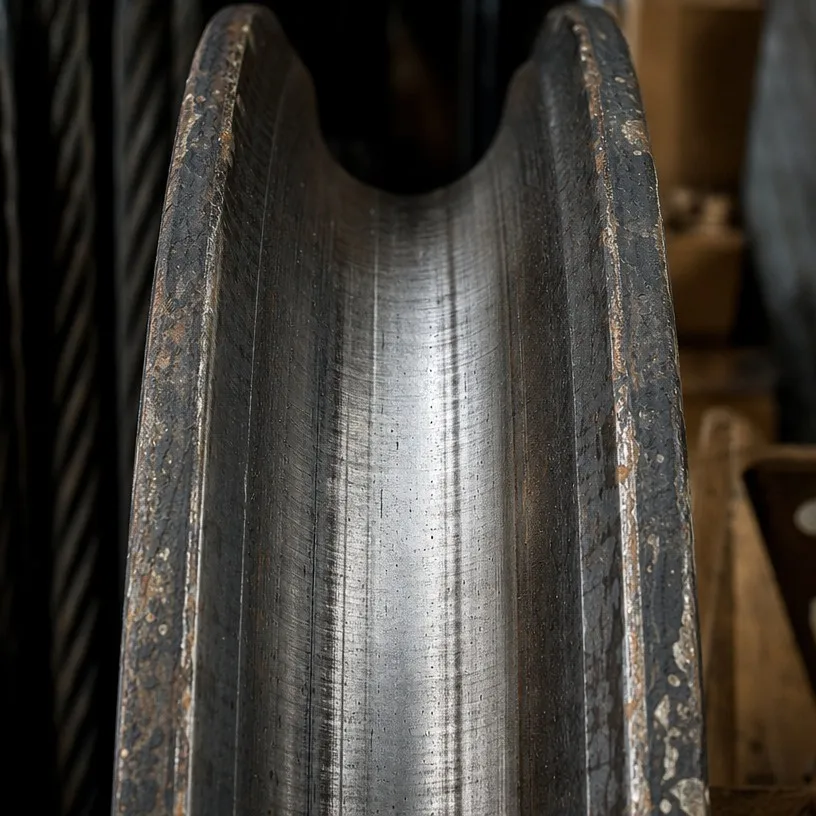

A wire rope is a machine that operates within another machine-the sheave and drum system. The geometry of the sheave groove is the primary external determinant of a rope's fatigue life. When the groove profile does not match the rope's nominal diameter, a series of complex lateral forces-known as "pinching"-accelerate the degradation of the strands.

The Radius of Failure:

A healthy sheave groove should typically have a radius of 0.525 to 0.550 times the nominal rope diameter. If the groove is too tight, it "pinches" the rope, preventing the individual wires from sliding against each other during bending. This locks the internal strands and leads to rapid fatigue cracking at the "inter-strand contact points." Conversely, if the groove is too wide, the rope flattens under load, leading to structural deformation or "birdcaging."

The Hardness Differential:

Ideally, the sheave groove should be slightly softer than the wire rope strands to prevent the rope from "cutting" into the machine. However, in heavy-duty port cranes, we often see hardened sheave grooves. In these cases, the rope surface becomes the sacrificial element. At SOLITE, we provide sheave-conformity audits for our clients, utilizing precision gauges to ensure that the mechanical interface between the steel and the sheave is an optimized partnership of geometry and physics.
